EAN kod8595057667129
Tarifni broj73181595
Težina0,0070 kg/pcs
Površinska obradaElectrolytic Galvanized
Otpornost na temperaturu-50 - 150 °C
ProsječniM6 mm
Dužina10 mm
Funkcionalnost u požaruP90-R, E90, PS90
Standardi otpornosti na vatruČSN 73 0895, DIN 4102-12, STN 92 0205

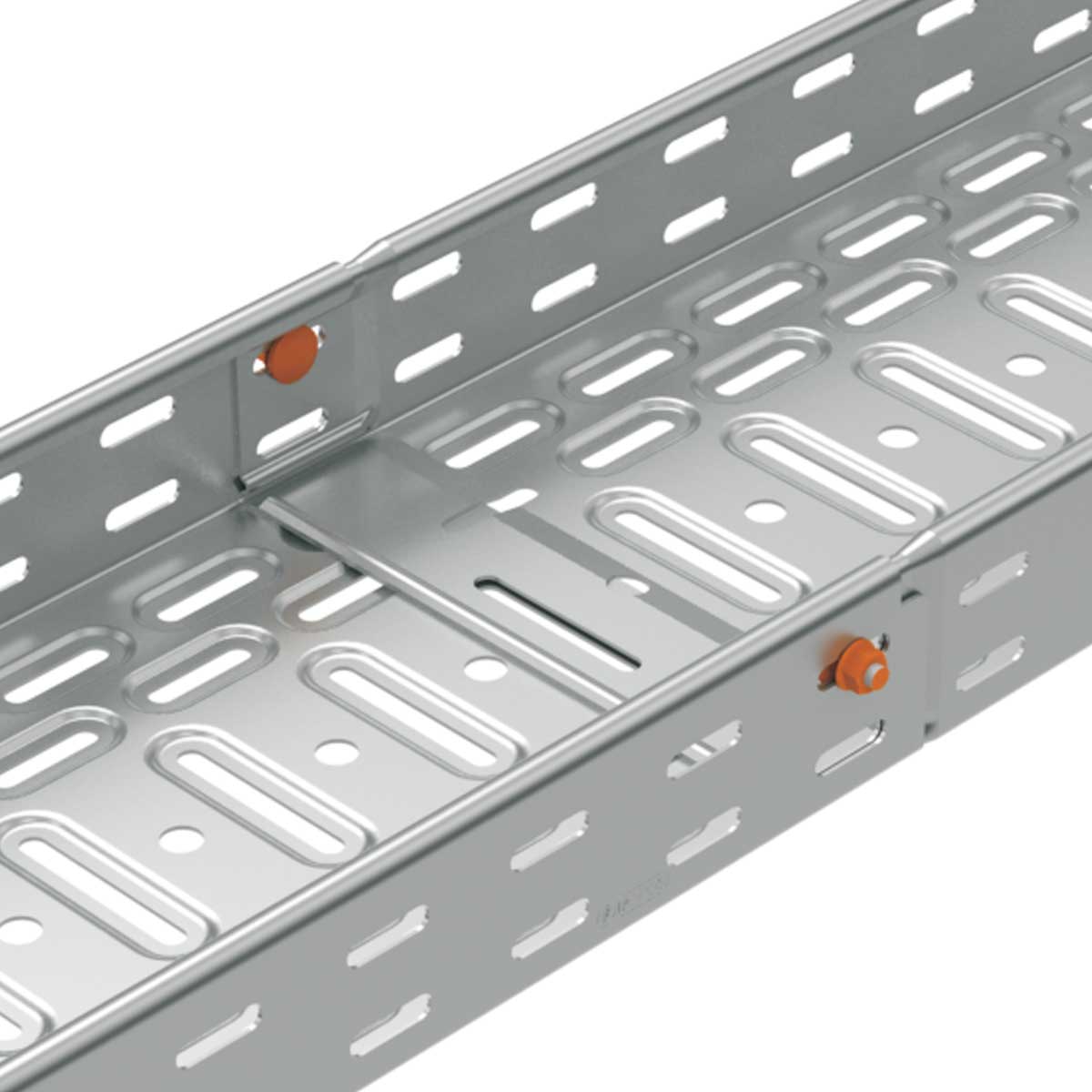

This bolt is used to connect cable trays or cable trays with accessories, or to attach trays to supporting structures. Used for the same purpose on cable ladder systems. To protect the cables, the bolt head is inside the cable tray. The bolt and the nut provide a conductive equipotential bond up to 25 A.

Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
