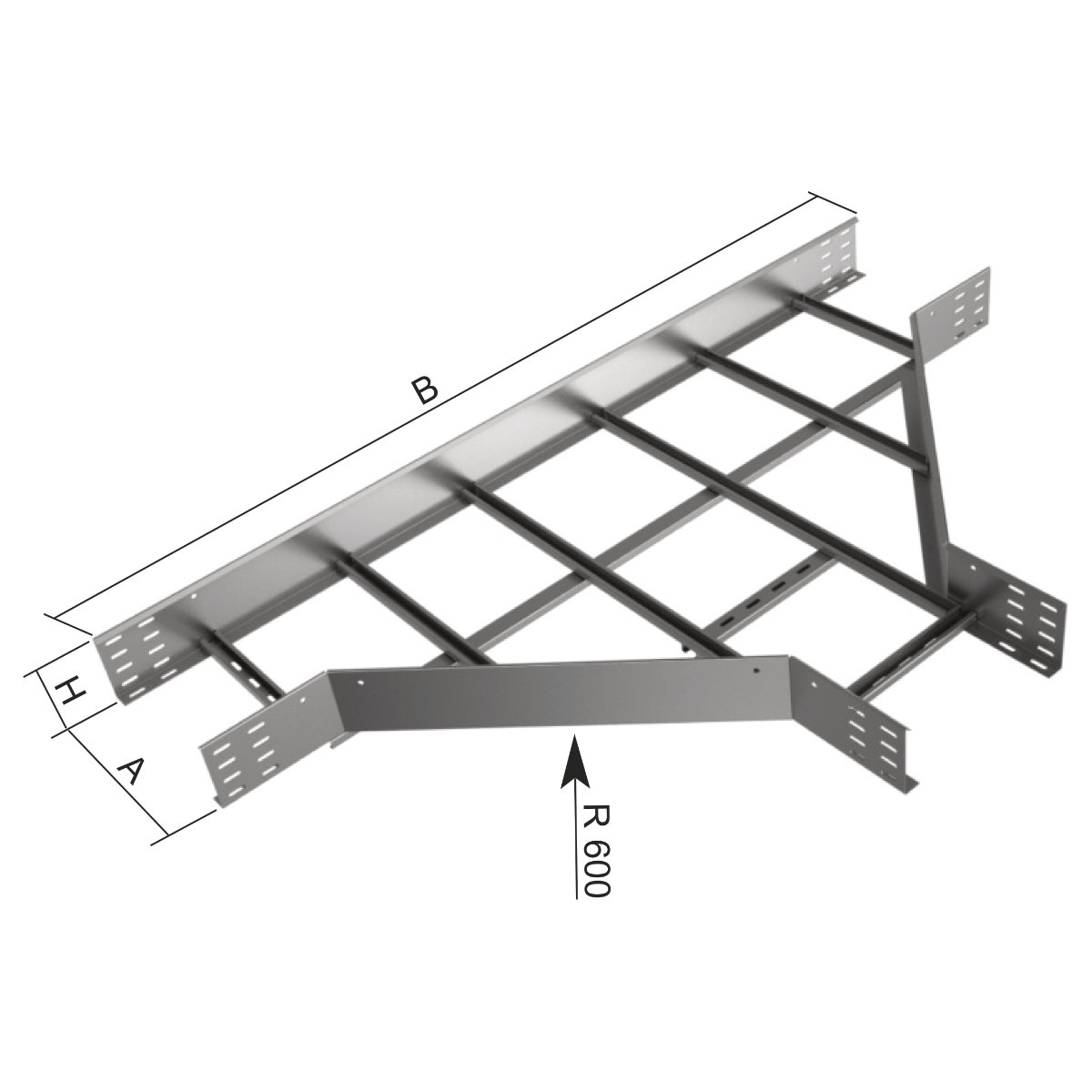

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
KLT_EN
| EAN kod | 8595057644625 |
| Tarifni broj | 73089059 |
| Težina | 11,3390 kg/pcs |
| Površinska obrada | Pre-Galvanized |
| Otpornost na temperaturu | -50 - 150 °C |
| Standardi | ČSN EN 61537 |
| Debljina metala | 1,2 - 1,5 mm |
| Količina vijaka za spajanje | 48 |
| Dimenzija A | 600 mm |
| Dimenzija B | 1800 mm |
| Dimenzija H | 110 mm |
The connection of the T-piece with the ladder is performed by using the 6 pcs couplings S 110X200 and the 48 pcs bolts NSM 6X10.
