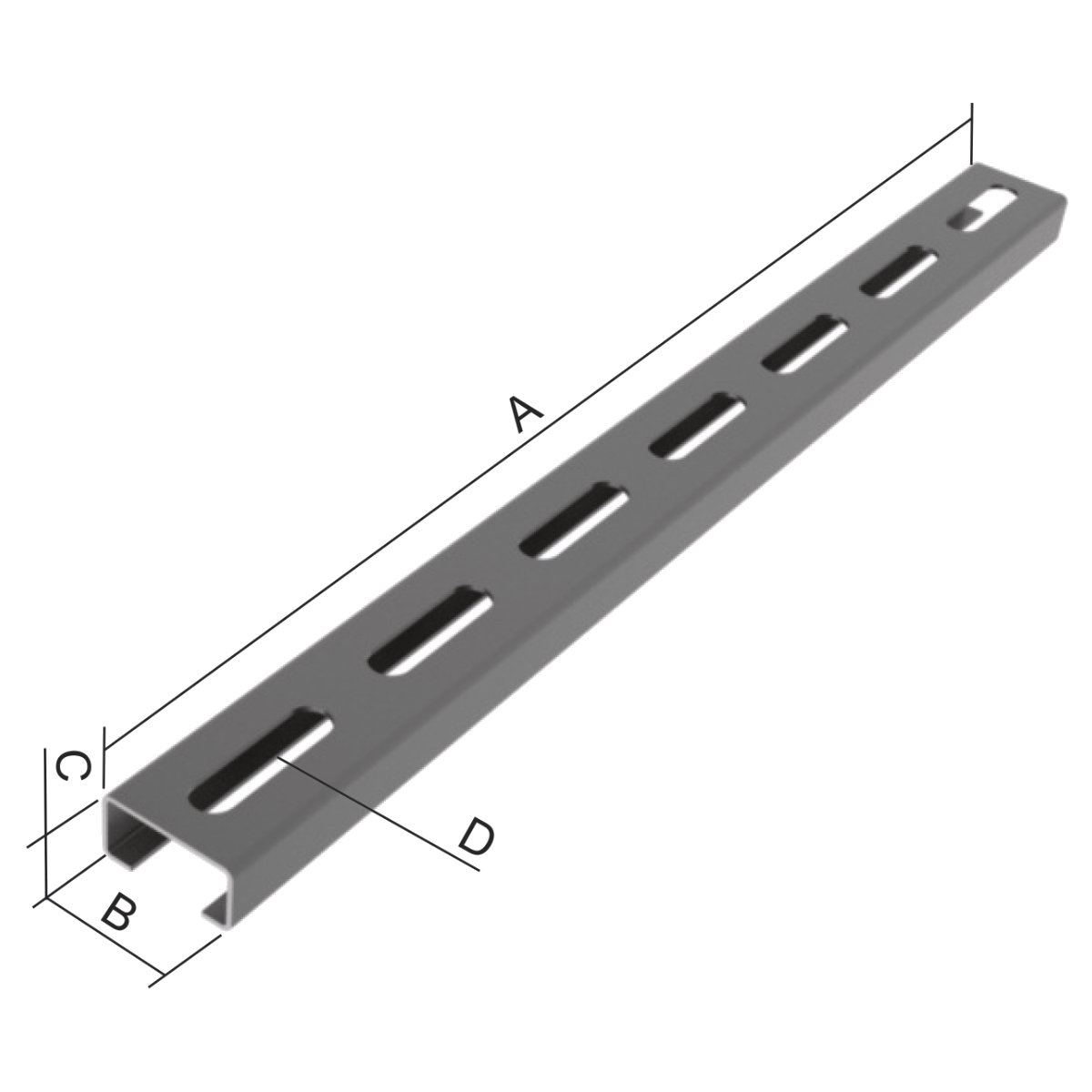

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
NP_100-350_EN
| EAN kod | 8595057639799 |
| Tarifni broj | 72169180 |
| Težina | 0,1430 kg/pcs |
| Površinska obrada | Pre-Galvanized |
| Otpornost na temperaturu | -50 - 150 °C |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi | ČSN EN 61537 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Debljina metala | 1,2 mm |
| Maksimalno opterećenje | 100 kg |
| Dimenzija A | 250 mm |
| Dimenzija B | 30 mm |
| Dimenzija C | 15 mm |
| Za širinu kabelske ploče | 200 mm |
| Vanjske rupe | 9x35 mm |
| Unutarnje rupe | 7x32 mm |
Suitable for creating of beam for cable traces to be carried on thread rods. The load bearing profile is fixed by using two threaded rods ZT 8 + nut M 8 + washer PD 8.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
