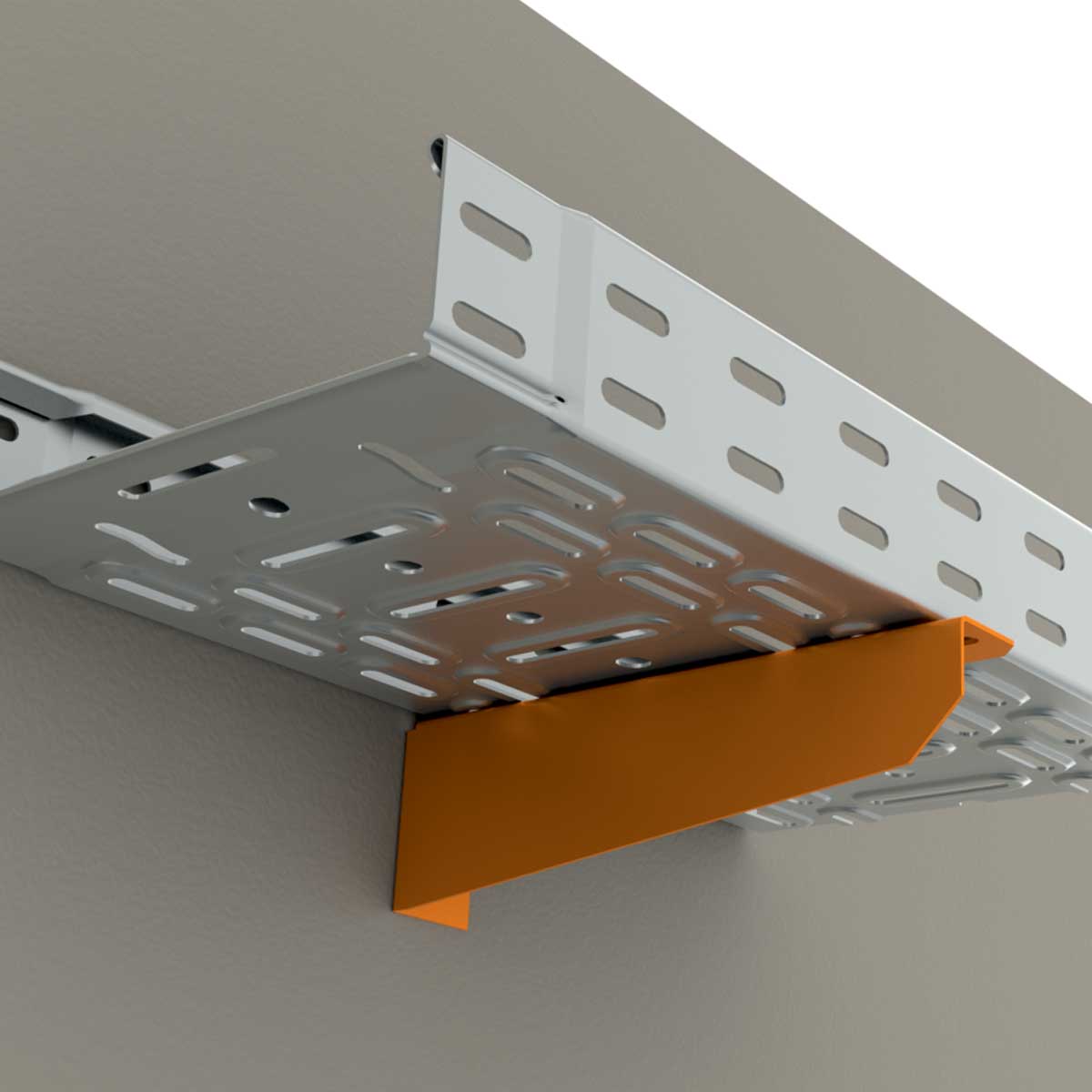

Ilustrativni prikaz
DLN_EN
| EAN kod | 8595568916679 |
| Tarifni broj | 83024190 |
| Težina | 0,2500 kg/pcs |
| Površinska obrada | Pre-Galvanized |
| Maksimalno opterećenje | 60 kg |
| Dimenzija A | 160 mm |
| Dimenzija B | 64 mm |
| Za širinu kabelske ploče | 150 mm |
| Za visinu kabelske police | 35 - 110 mm |
The holder is intended for fixing on the wall or on the ceiling profile. For mounting on the ceiling profile SPL, the sliding nuts PM 41 M 10 will be used together with bolt S 10X20. Fix to the celling profile SPLN, SPSN or SPU using bolts S 10X20, nuts M 10 and washer PD 10. Cable tray will be attached to the DL holder using the bolts NSM 6X10.
