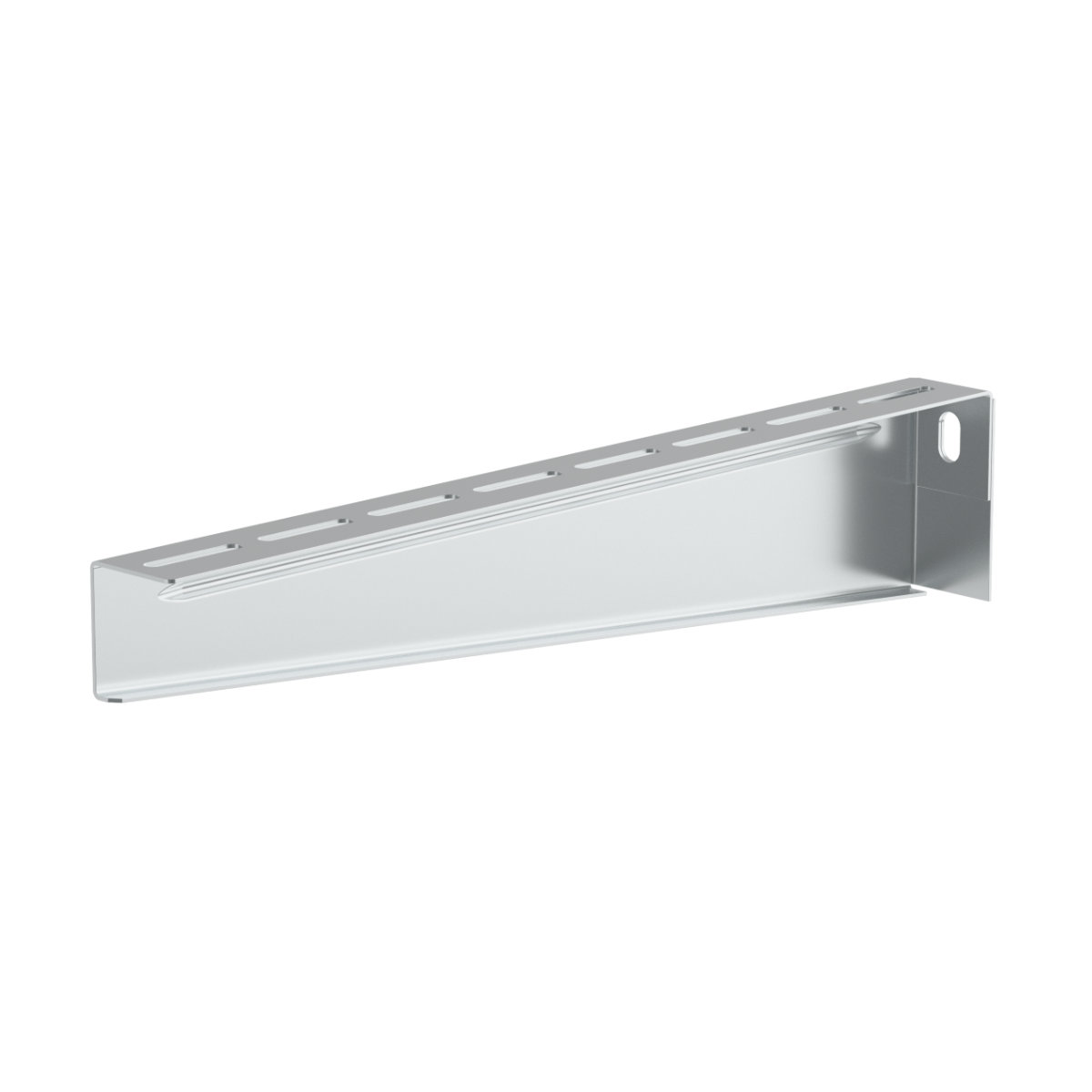

Ilustrativni prikaz
DS_ZM_EN
| EAN kod | 8595568940674 |
| Tarifni broj | 83024190 |
| Težina | 0,5698 kg/pcs |
| Površinska obrada | Magnelis® |
| Maksimalno opterećenje | 130 kg |
| Dimenzija A | 420 mm |
| Dimenzija B | 84 mm |
| Za širinu kabelske ploče | 400 mm |
| Za visinu kabelske police | 35 - 110 mm |
The bracket is intended for mounting to a wall or a ceiling profile. Fixing to the wall is done using a Ø 8 mm anchor. For mounting on the ceiling profile SPL and SPS, sliding nuts PM 41 M 10 together with screws S 10X20 are used. For fastening to the ceiling profile SPLN, SPSN or SPU, a screw S 10X20, a nut M 10 and a washer PD 10 are used. For fastening the cable tray to the bracket DS, screws NSM 6X10 are used.
