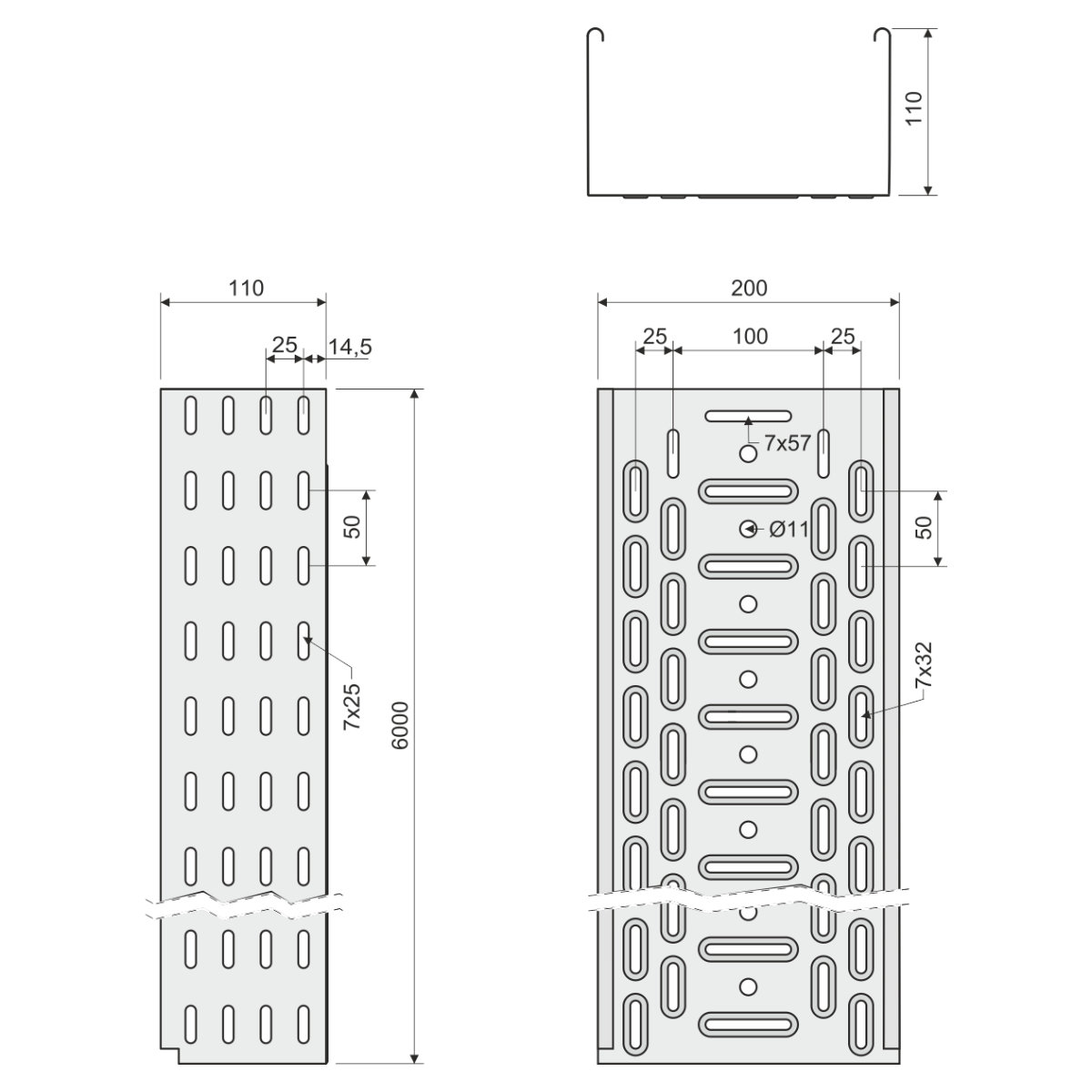

Ilustrativni prikaz
KZ110_S6_EN
| EAN kod | 8595057636194 |
| Tarifni broj | 72169180 |
| Težina | 4,8000 kg/m |
| Površinska obrada | Pre-Galvanized |
| Otpornost na temperaturu | -50 - 150 °C |
| Širina | 200 mm |
| Visina | 110 mm |
| Dužina | 6000 mm |
| Standardi | ČSN EN 61537 |
| Debljina metala | 1,5 mm |
| Količina vijaka za spajanje | 34 |
The standard length of the cable tray is 6 m. The trays are connected by 2 pcs of KDS jointing plate and 17 pcs of NSM 6X10 bolts. Jointing points can not be placed over the support. The cable tray is suitable for creating a cable route with a support spacing of up to 6 meters.
