EAN kod | 8595057634091 |
Tarifni broj | 83024190 |
Težina | 0,5400 kg/pcs |
Površinska obrada | Pre-Galvanized |
Funkcionalnost u požaru | P90-R, E90, PS90 |
Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
Maksimalno opterećenje | 50 kg |

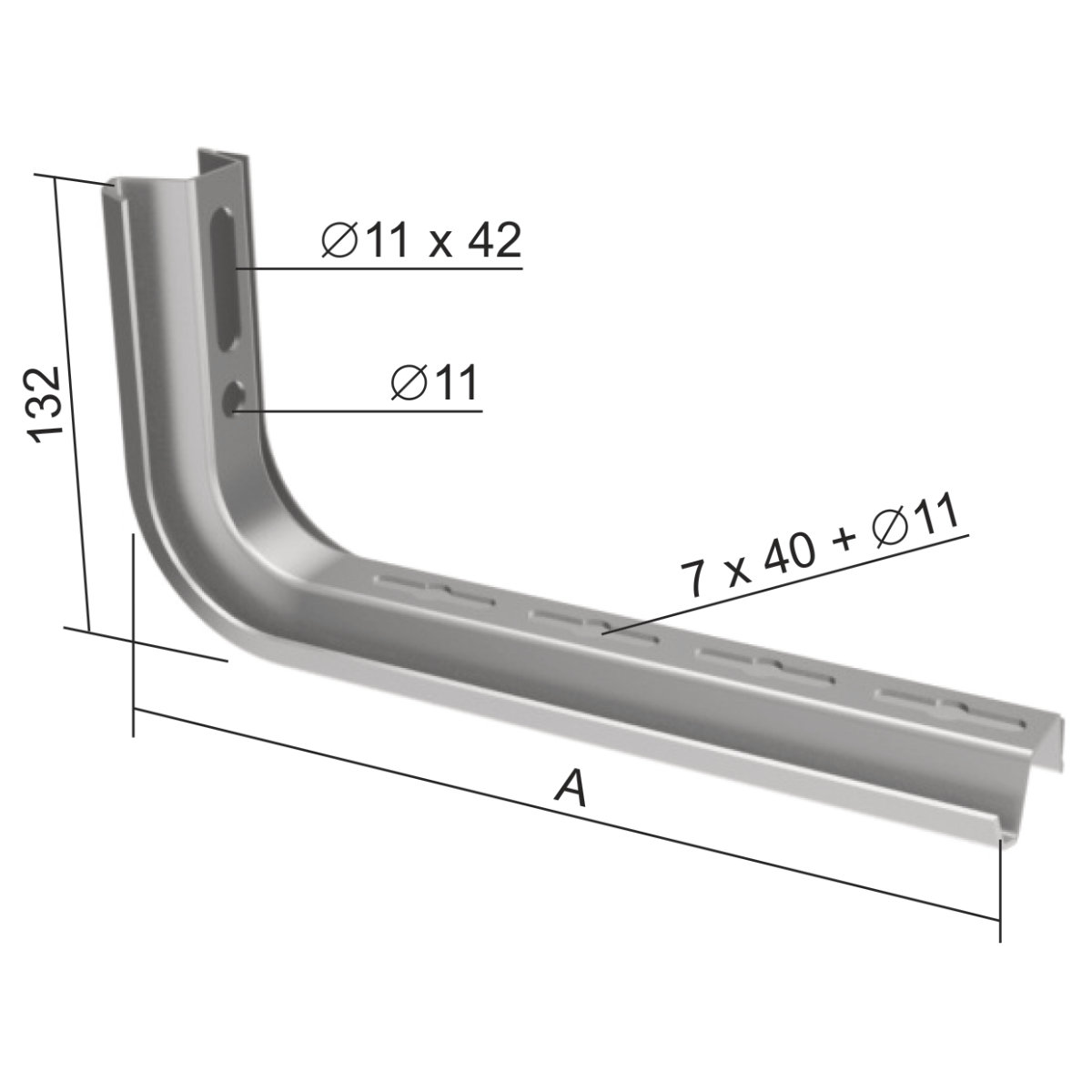

Dimenzija A | 463 mm |
Za širinu kabelske ploče | 400 mm |
Maks. opterećenje za vatrootpornost | 10 kg |

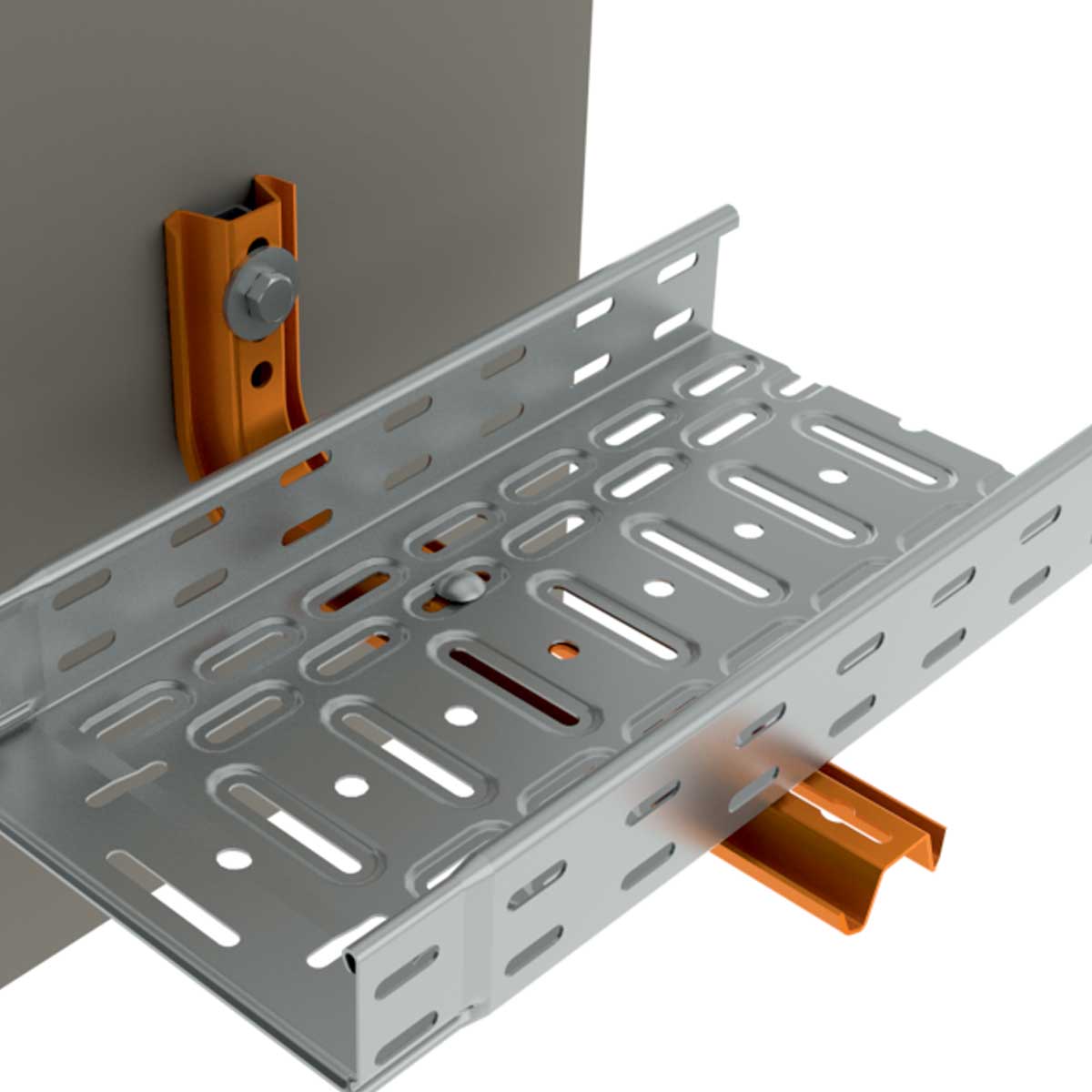

Holders are used on the wall or on the ceiling profile. To eliminate deformation during assembly the STS reinforcement is designated. The cable tray is fixed by using the bolts NSM 6X10. The installation is done by the anchors KPO 10X95 or KKZ 10, screws S 10X40 and washers PD 10.
Note for system with maintained functionality in fire:
To eliminate deformation during assembly the STS reinforcement
is designated.
You find more information in the catalogue Systems with maintained functionality in fire.
