EAN kod | 8595057692374 |
Tarifni broj | 73089059 |
Težina | 6,0000 kg/m |
Površinska obrada | Pre-Galvanized |
Otpornost na temperaturu | -50 - 150 °C |

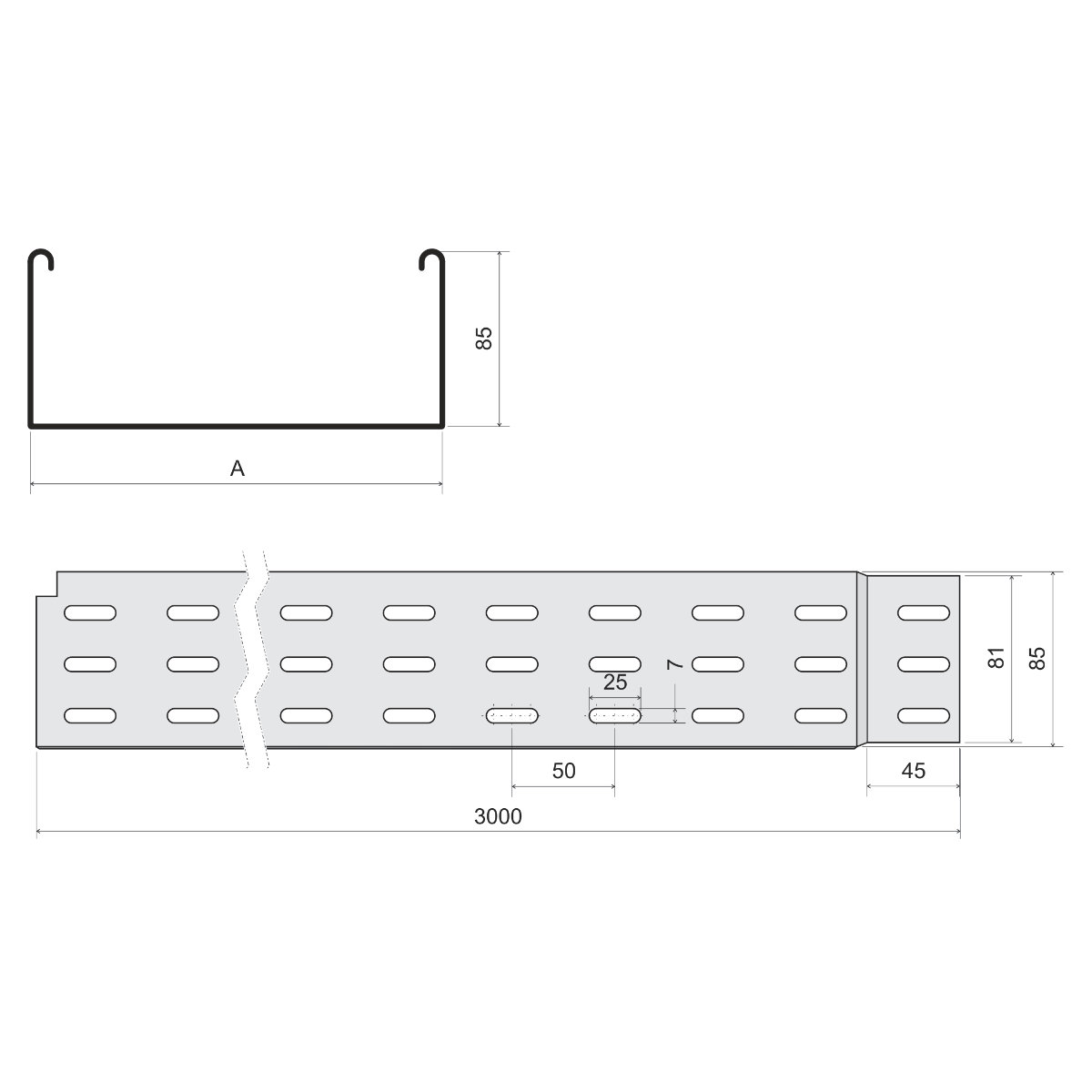

Širina | 500 mm |
Visina | 85 mm |
Dužina | 3000 mm |
Standardi | ČSN EN 61537 |
Debljina metala | 1,25 mm |
Količina vijaka za spajanje | 8 |
For securing the connection of the trays with the integrated coupling there are used the clamps made from spring steel KSV or the bolts NSM 6X10.
