Ilustrativni prikaz
PKC1_EN
| EAN kod | 8595057642249 |
| Tarifni broj | 73269098 |
| Težina | 0,0400 kg/pcs |
| Površinska obrada | Hot Dip Galvanized |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Dimenzija A | 14 mm |
| Dimenzija B | 23 mm |

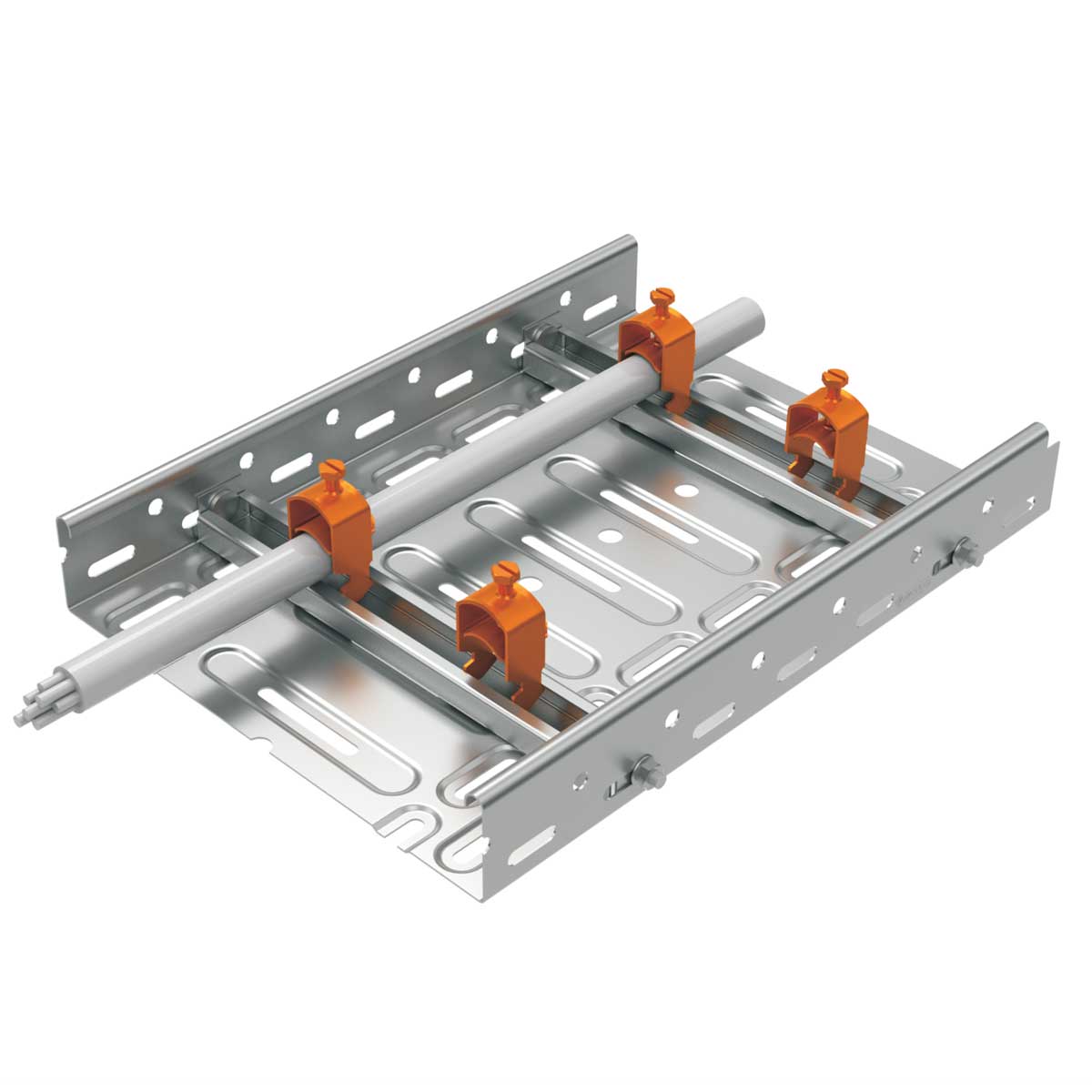

A min and B indicate the minimum and maximum diameter of the cable being fastened. For basic orientation in choosing cable clamp, use mentioned propositions. The basic surface treatment with which clamps are delivered makes it possible to use them even in harsh weather environments. The clams are designed to secure cable to partition cable tray, load bearing profile NPKV 50-600 or load bearing profile NP 30X15X1.20.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
