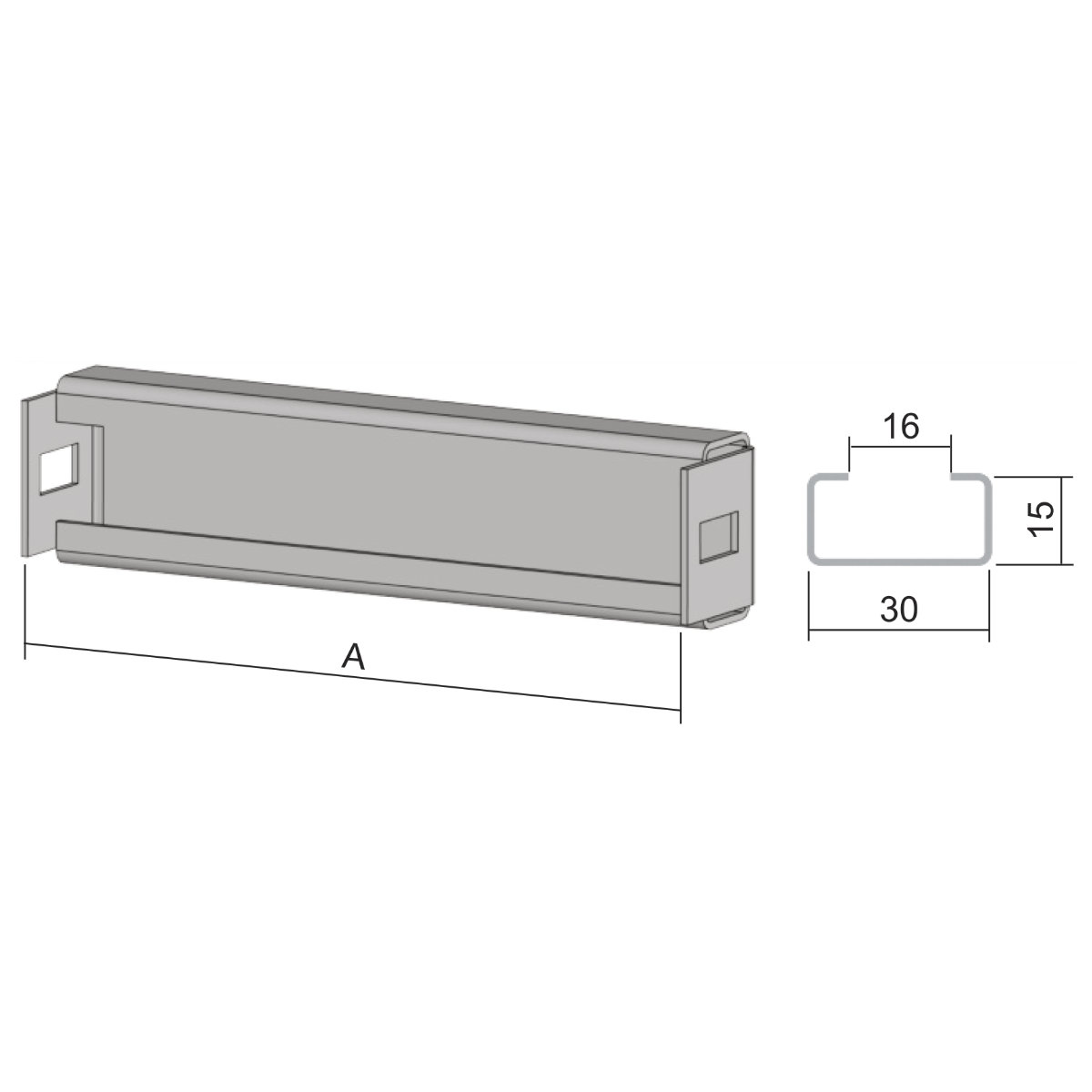

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
NPKV_EN
| EAN kod | 8595568905772 |
| Tarifni broj | 73269098 |
| Težina | 0,2220 kg/pcs |
| Površinska obrada | Hot Dip Galvanized |
| Otpornost na temperaturu | -50 - 150 °C |
| Standardi | ČSN EN 61537 |
| Dimenzija A | 297,5 mm |
| Za širinu kabelske ploče | 300 mm |
The supporting profiles is designated for the cable trays. It is installed on the bottom of the cable tray and it is fixed by using two bolts NSM 6X10 to the tray sidewalls. It is used for mounting of cable clamps and thereby for the anchoring of the cables inside the tray. It finds its use primarily in vertical routes, for the lightening of the cable tension. When using a cover it is necessary to take into account the height of the clamps.
