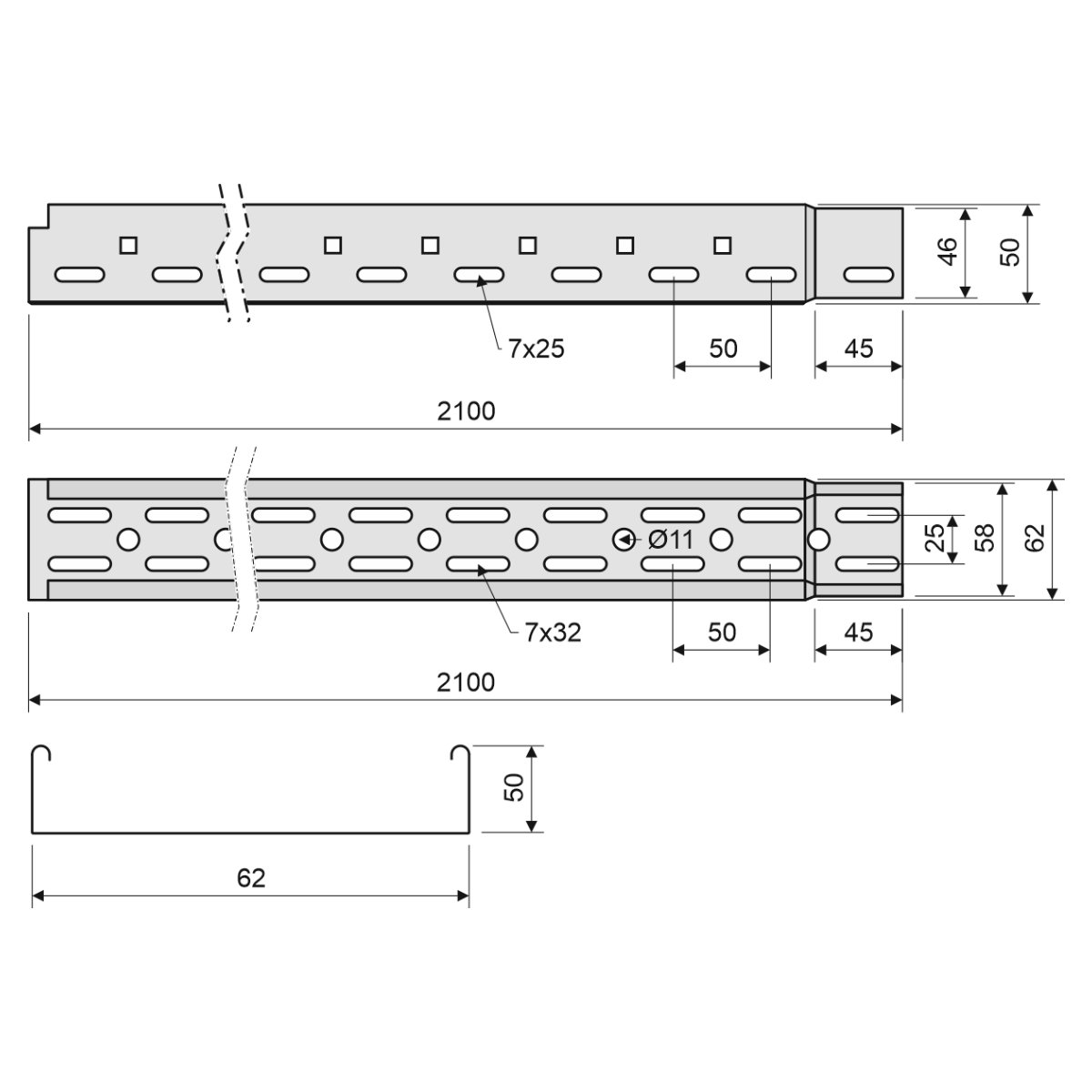

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
NKZI_EN
| EAN kod | 8595057695764 |
| Tarifni broj | 73089059 |
| Težina | 1,2520 kg/m |
| Površinska obrada | Hot Dip Galvanized |
| Otpornost na temperaturu | -50 - 150 °C |
| Širina | 62 mm |
| Visina | 50 mm |
| Dužina | 2098 mm |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi | ČSN EN 61537 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Debljina metala | 0,7 mm |
| Količina vijaka za spajanje | 2 |
| Maks. opterećenje za vatrootpornost | 10 - 20 kg |
For securing the connection of the trays with the integrated coupling there are used the clamps made from spring steel KSV or the bolts NSM 6X10.
Note for system with maintained functionality in fire:
For securing the connection of the trays with the integrated coupling there are used the bolts NSM 6X10.
You find more information in the catalogue Systems with maintained functionality in fire.
