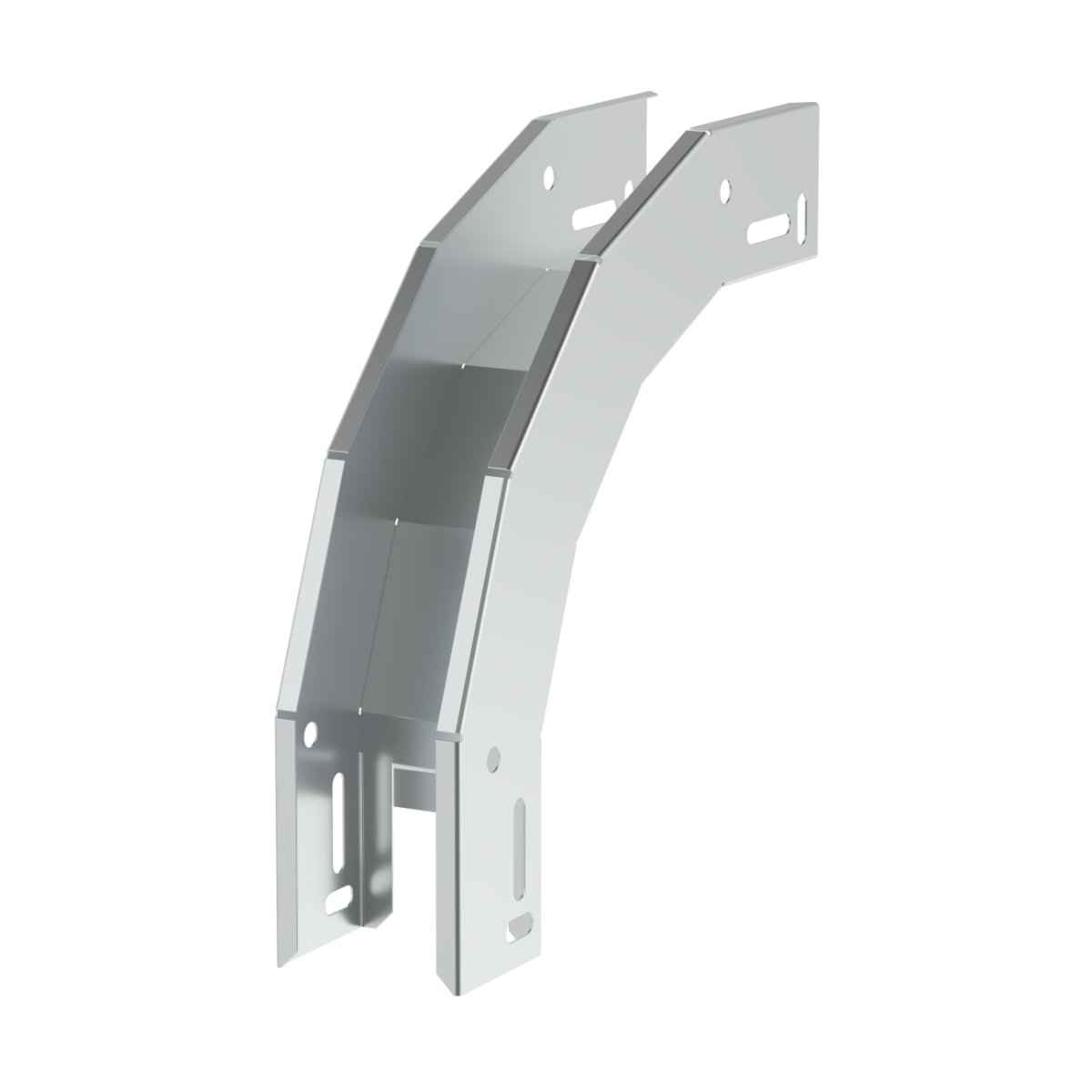

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
NKO90_M3_EN
| EAN kod | 8595057669420 |
| Tarifni broj | 73089059 |
| Težina | 0,4000 kg/pcs |
| Površinska obrada | Hot Dip Galvanized |
| Otpornost na temperaturu | -50 - 150 °C |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi | ČSN EN 61537 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Debljina metala | 0,7 mm |
| Količina vijaka za spajanje | 4 |
| Dimenzija A | 64 mm |
| Dimenzija B | 241 mm |
| Dimenzija H | 52 mm |
| Za širinu kabelske ploče | 62 mm |
| Za visinu kabelske police | 50 mm |
The connection is performed by direct sliding of the cable tray into the shaped piece and subsequent securing with bolts NSM 6X10.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
