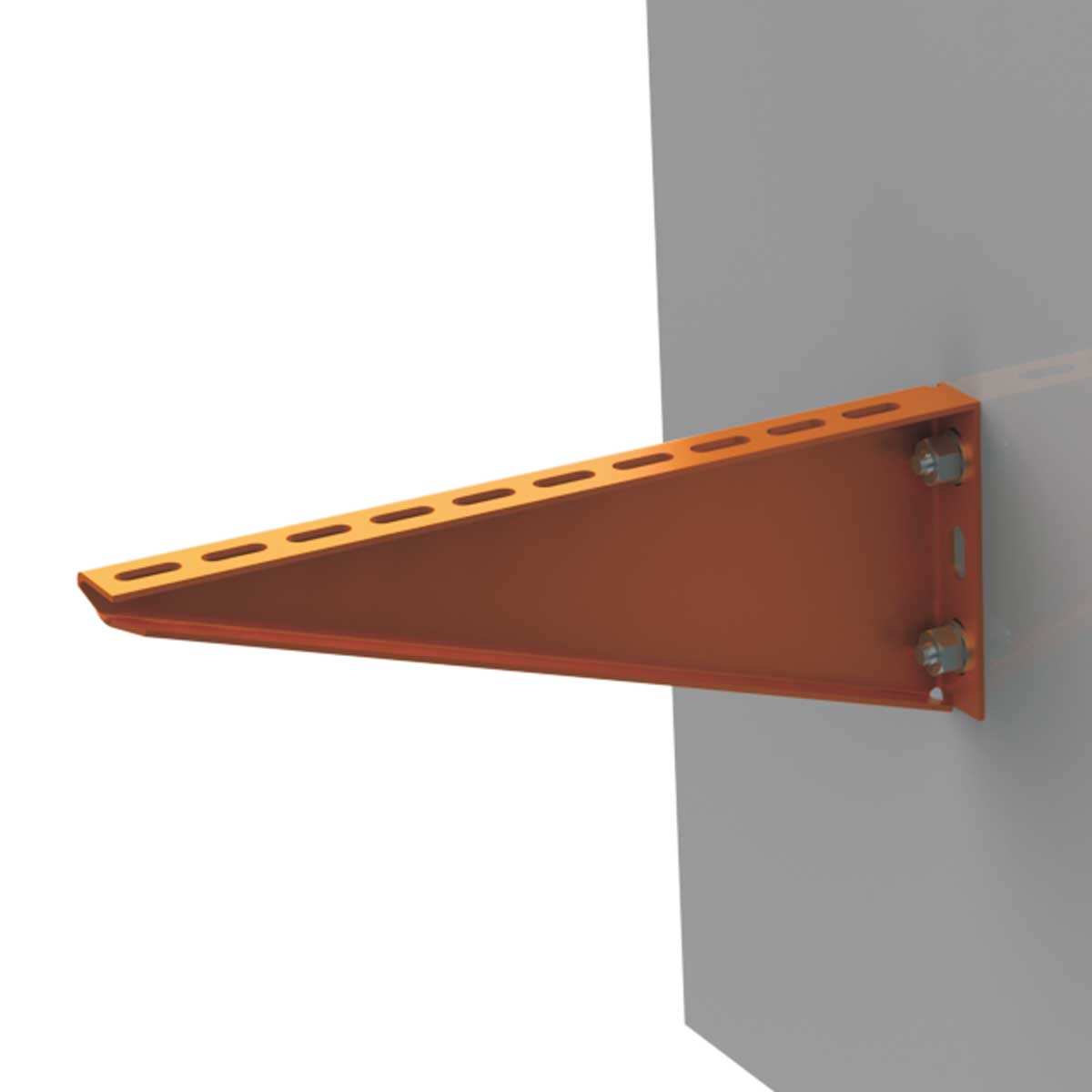

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
NPS_EN
| EAN kod | 8595057696266 |
| Tarifni broj | 83024190 |
| Težina | 0,0683 kg/pcs |
| Površinska obrada | Hot Dip Galvanized |
| Otpornost na temperaturu | -50 - 150 °C |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Debljina metala | 1,5 mm |
| Maksimalno opterećenje | 120 kg |
| Dimenzija A | 82 mm |
| Dimenzija B | 62 mm |
| Za širinu kabelske ploče | 62 mm |
| Za visinu kabelske police | 50 - 100 mm |
The tray is fixed to the support using 1 NSM 6X10 screws. The support is fixed to the wall using 1 Ø 8 mm anchors.
Note for system with maintained functionality in fire:
The tray is fixed to the support using 2 NSM 6X10 screws.
The support is fixed to the wall using 2 Ø 8 mm anchors.
You find more information in the catalogue Systems with maintained functionality in fire.
