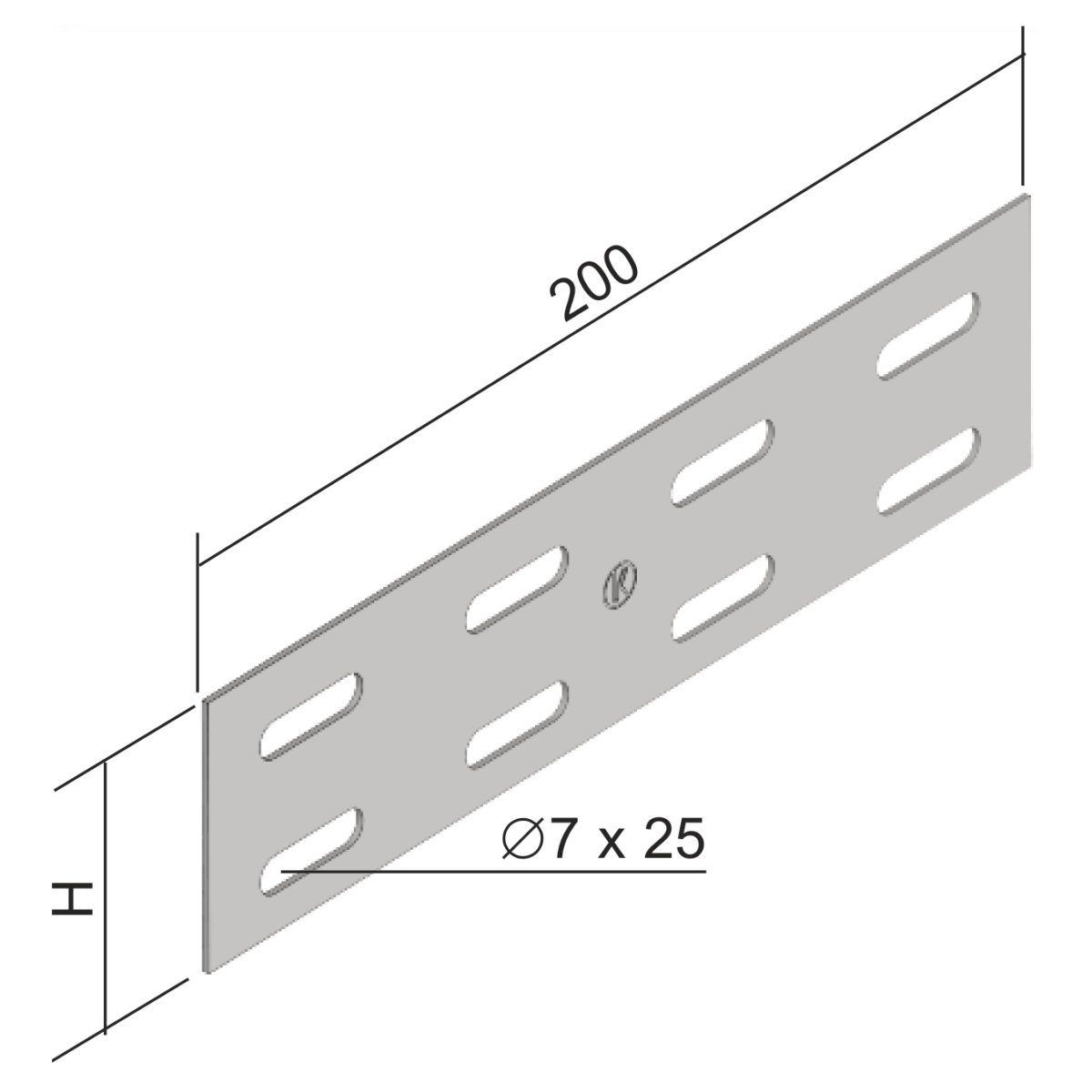

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
S_EN
| EAN kod | 8595568926081 |
| Tarifni broj | 73269098 |
| Težina | 0,1010 kg/pcs |
| Površinska obrada | Non electrolytic plating Geomet |
| Otpornost na temperaturu | -50 - 150 °C |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi | ČSN EN 61537 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Debljina metala | 1,2 mm |
| Količina vijaka za spajanje | 4 |
| Dimenzija H | 50 mm |
| Za visinu kabelske police | 60 mm |
Used to connect trays / ladders with no built-in connector or if the connector has been removed. Connectors can be bent to create an angled branch. Attached using NSM 6X10 screws that meet the requirement for conductive bonding.
Note for system with maintained functionality in fire:
It serves for connecting trays. Fixing is carried out by screws NSM 6X10.
You find more information in the catalogue Systems with maintained functionality in fire.
