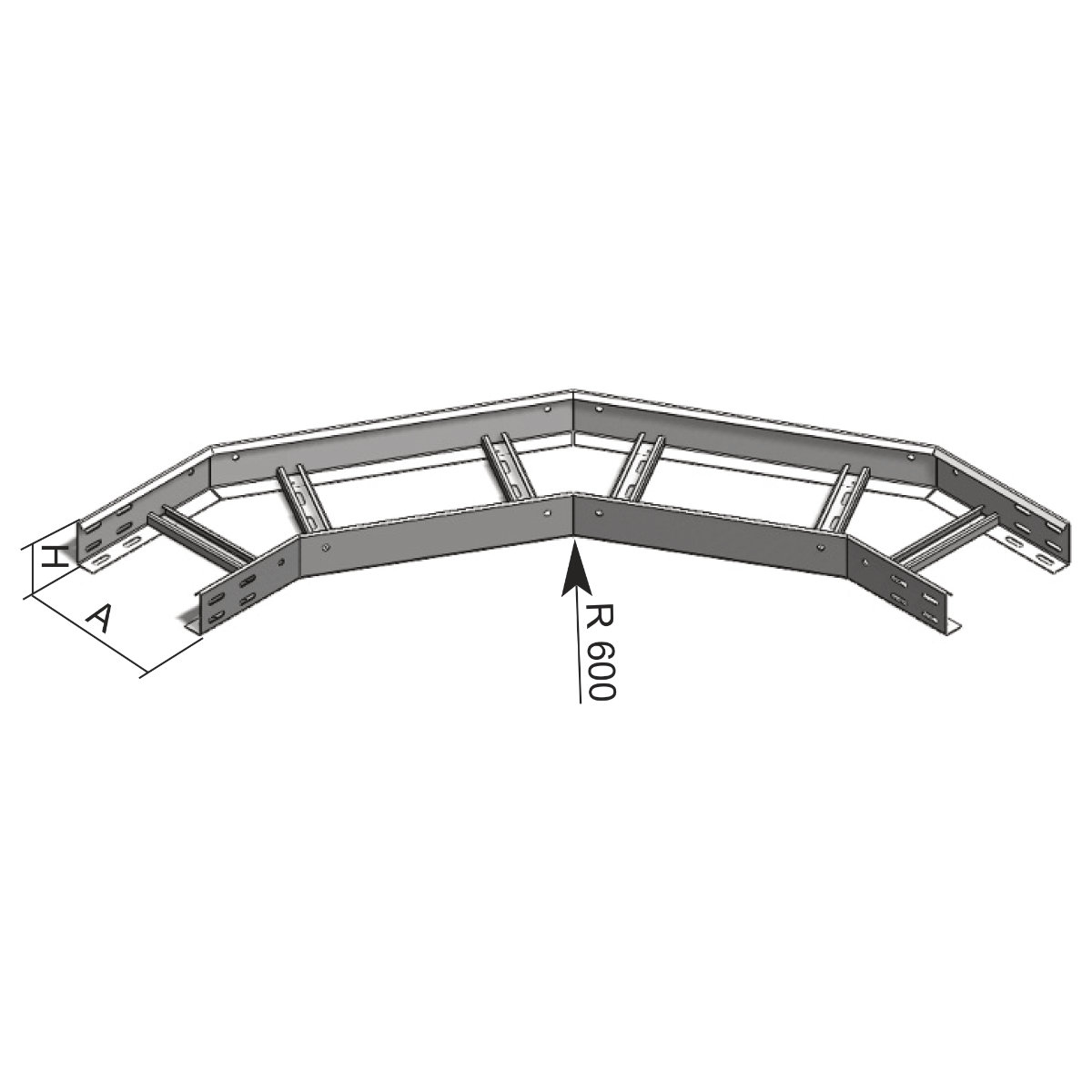

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
KLOBH_EN
| EAN kod | 8595057661318 |
| Tarifni broj | 73089059 |
| Težina | 6,1420 kg/pcs |
| Površinska obrada | Hot Dip Galvanized |
| Otpornost na temperaturu | -50 - 150 °C |
| Standardi | ČSN EN 61537 |
| Debljina metala | 1,2 - 1,5 mm |
| Količina vijaka za spajanje | 16 |
| Dimenzija A | 600 mm |
| Dimenzija H | 60 mm |
The connection of the bend with the ladder is performed by using the 4 pcs couplings S 60X200 and 16 pcs the bolts NSM 6X10.
