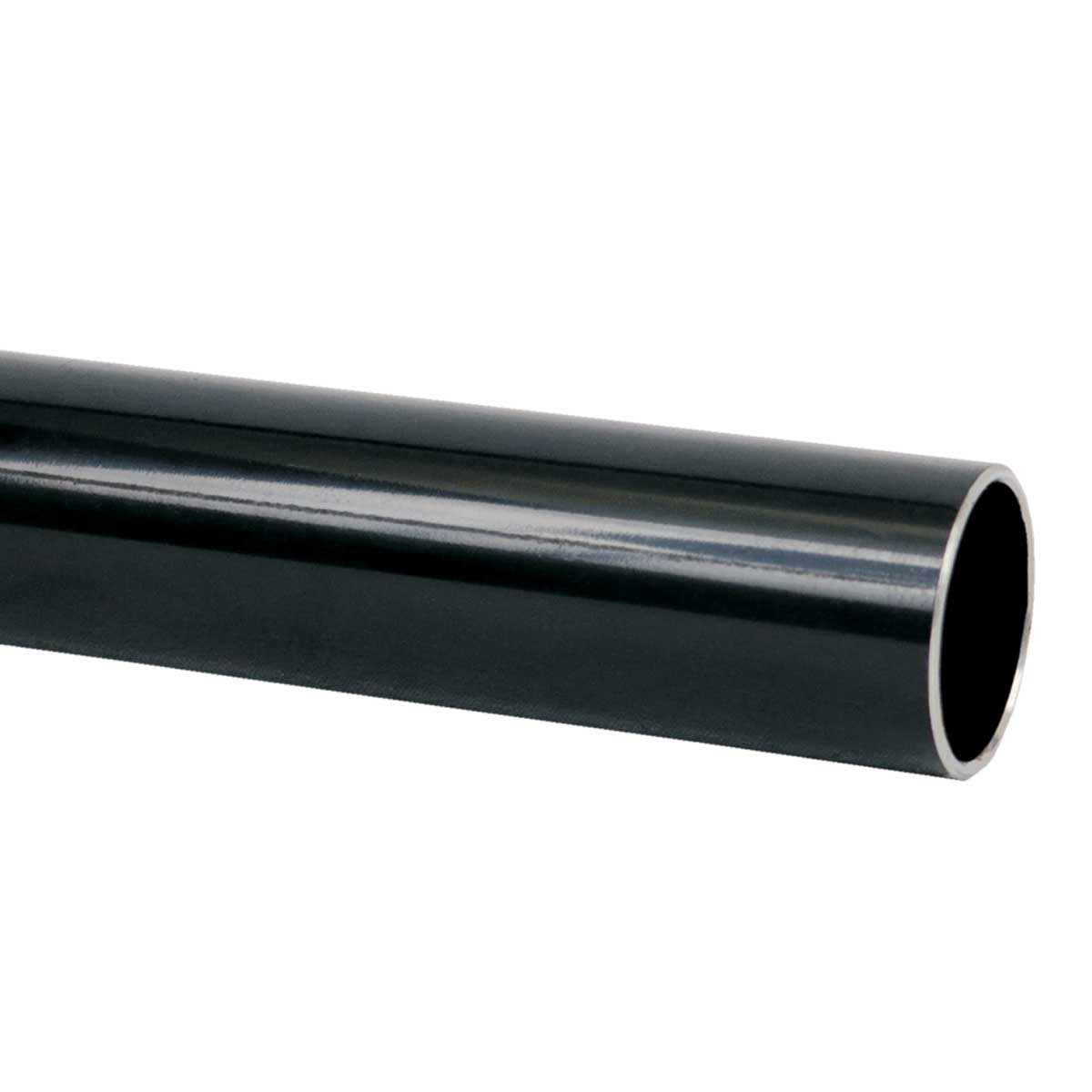

Steel unthreaded pipes - painted in black on both sides (EN)

Prilozi i certifikati

Ilustrativni prikaz

6216E ECZ - ocelová trubka bez závitu celolak (EN)

tehnički list
trubka_ocel_EN_EN
trubka_ocel_EN_DE

certifikat
Conformity declaration
Declaration RoHS
Declaration REACH
Certificate ESČ

EAN kod	8595057634299
Tarifni broj	73063072
Težina	0,3900 kg/m
Boja	black
Materijal	steel
Površinska obrada Varnished ECZ: smooth steel material painted on both sides black, medium corrosion resistance - Group 2
Otpornost na temperaturu	-45 - 250 °C
Mehanički otpor	1250 N/5cm
Mehanička zaštita	IK10
Dužina	3 m
Vanjski promjer	16 mm
Unutarnji promjer (min.)	12,2 mm
Kôd sortiranja	44561
Standardi	ČSN EN 61386-1 ed.2

The pipes are suitable for mechanical protection of conductors and cables. While using pipes along with bushing 4816E - 4863 is scope of application only -5 - +60 °C.
