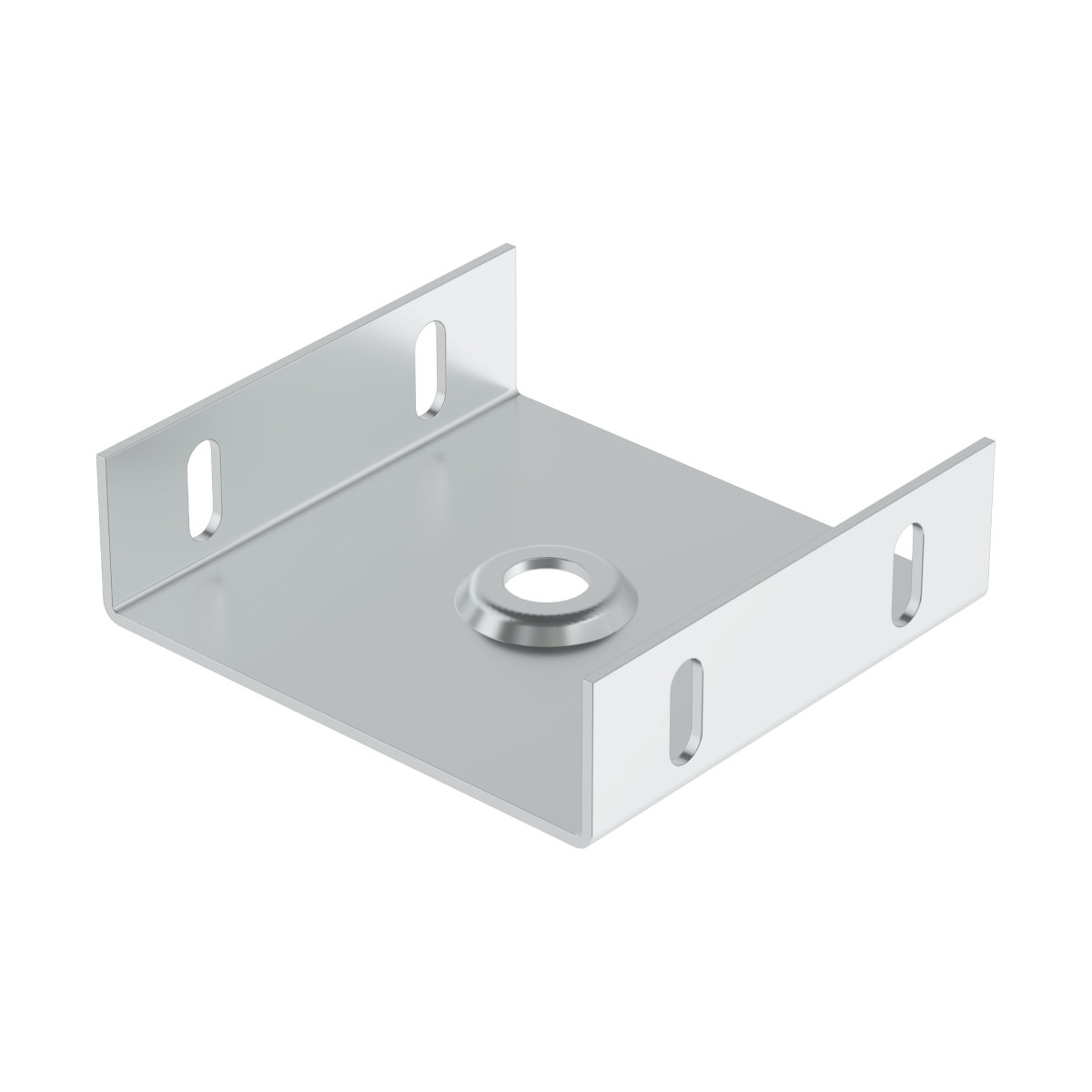

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
ZVNI_EN
| EAN kod | 8595568925336 |
| Tarifni broj | 73269098 |
| Težina | 0,2380 kg/pcs |
| Površinska obrada | Hot Dip Galvanized |
| Otpornost na temperaturu | -50 - 150 °C |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi | ČSN EN 61537 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Debljina metala | 2 mm |
| Količina vijaka za spajanje | 4 |
| Maksimalno opterećenje | 90 kg |
| Dimenzija A | 96 mm |
| Za širinu kabelske ploče | 100 mm |
| Za visinu kabelske police | 35 - 60 mm |
It is mounted using the threaded rod ZT 8 or ZT 10 and nut MN. The dimension of the nut is chosen by the diameter of the threaded rod. The nuts MN are not part of the hanger. The inner hinge is inserted into the tray before connecting it to another tray.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
