Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
VMB_EN
| EAN kod | 8595057664791 |
| Tarifni broj | 73269098 |
| Težina | 0,2340 kg/pcs |
| Površinska obrada | Hot Dip Galvanized |
| Otpornost na temperaturu | -50 - 150 °C |
| Standardi | ČSN EN 61537 |
| Debljina metala | 2 mm |
| Dimenzija A | 200 mm |
| Za širinu kabelske ploče | 200 mm |

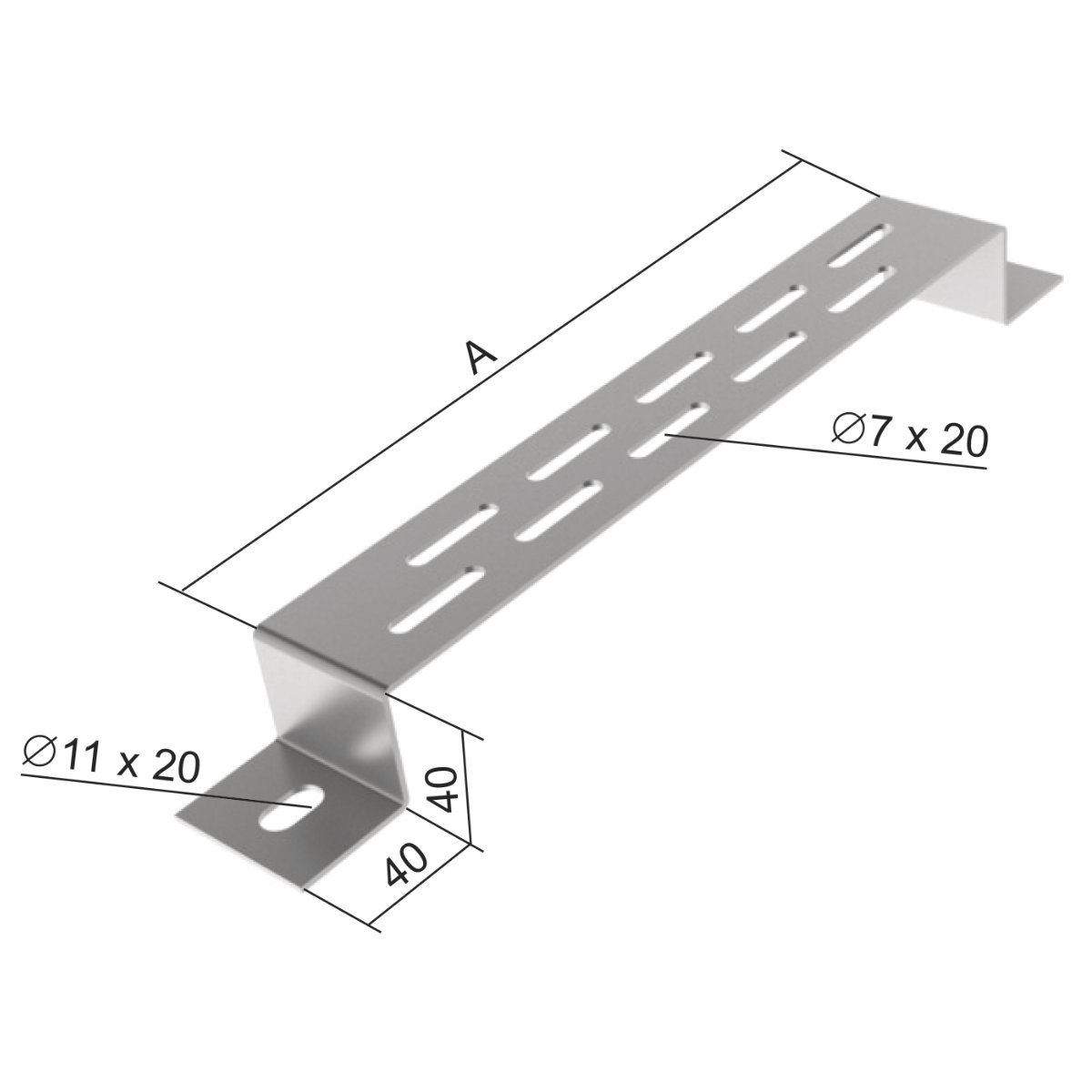

It is used to attach a cable tray to the floor or wall. Attachment to the wall is carried using the Ø 10 mm wall clamps. Cable tray is installed to VMB using the bolts NSM 6X10.
