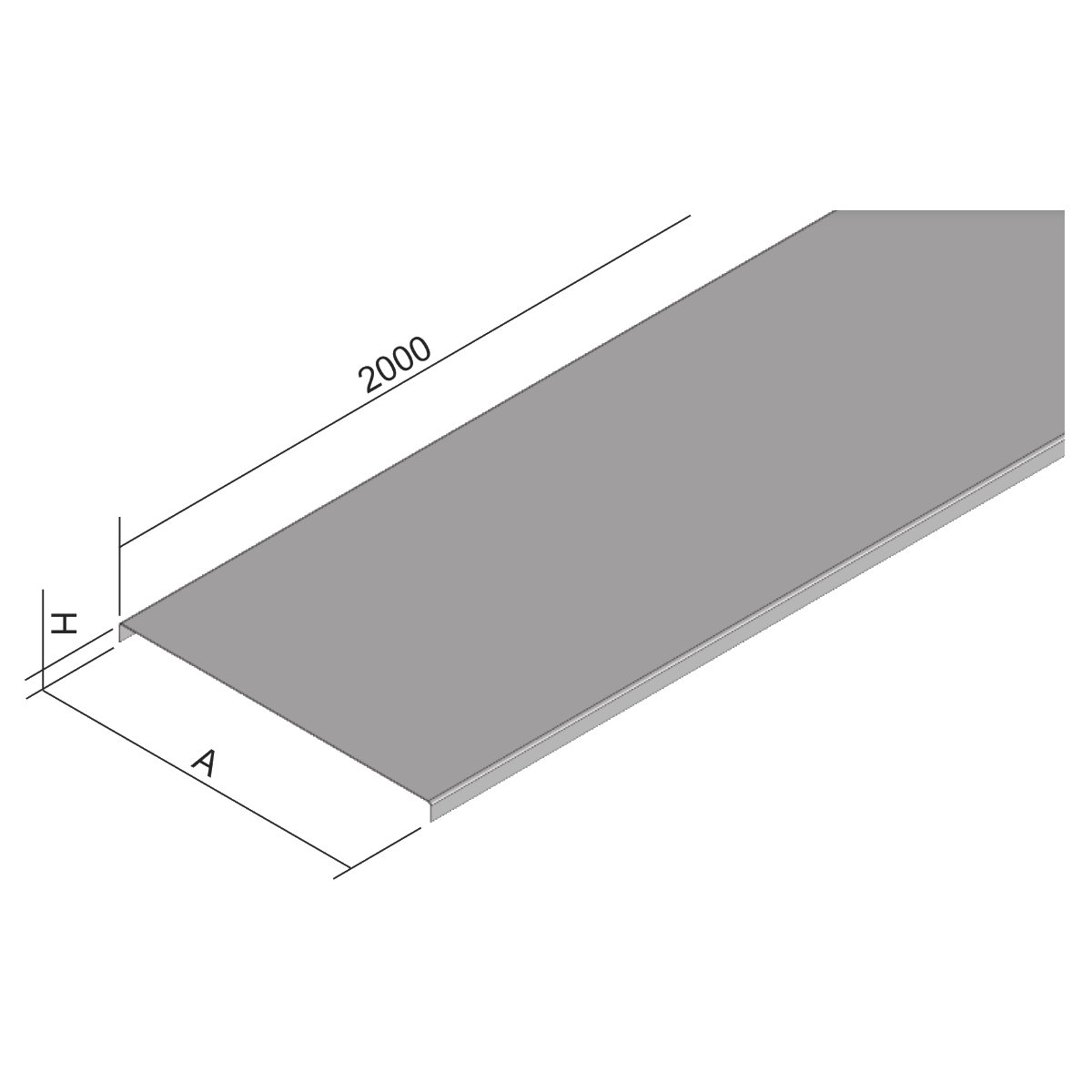

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
V_EN
| EAN kod | 8595057657991 |
| Tarifni broj | 72169180 |
| Težina | 1,3000 kg/m |
| Površinska obrada | Hot Dip Galvanized |
| Otpornost na temperaturu | -50 - 150 °C |
| Širina | 150 mm |
| Visina | 11 mm |
| Dužina | 2000 mm |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi | ČSN EN 61537 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Debljina metala | 0,8 mm |
The standard length of the cable tray cover is 2 m. Stated sheet metal thickness is delivered as standard. Cover with thicker sheet metal can be delivered without prior notice. The fixing of the cover to the tray is done using the cover fixture VU (2 pcs per meter).
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
