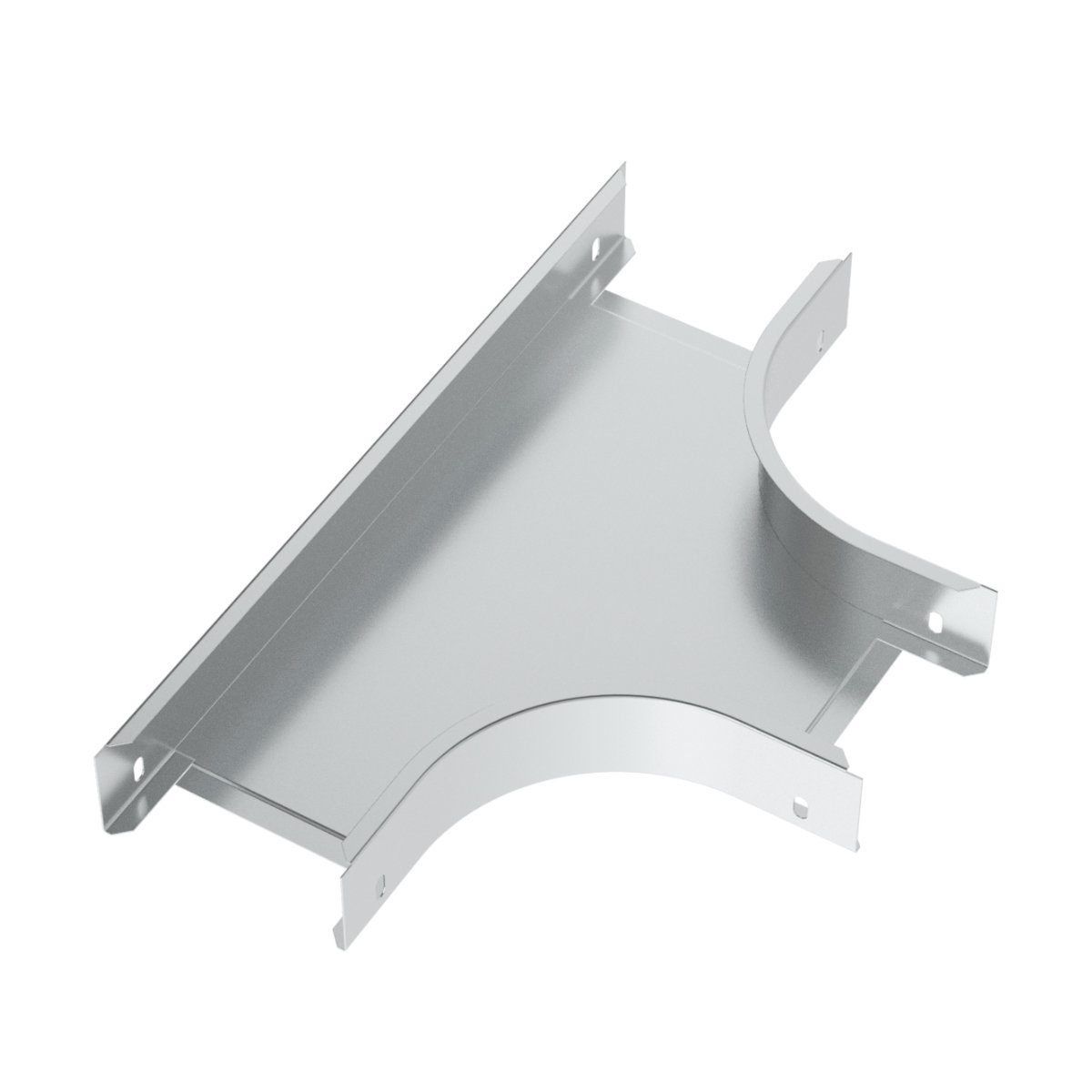

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
NIXT_EN
| EAN kod | 8595057672826 |
| Tarifni broj | 73089059 |
| Težina | 0,8600 kg/pcs |
| Površinska obrada | Stainless steel AISI 304 |
| Otpornost na temperaturu | -50 - 150 °C |
| Standardi | ČSN EN 61537 |
| Debljina metala | 0,8 mm |
| Količina vijaka za spajanje | 6 |
| Dimenzija A | 128 mm |
| Dimenzija B | 448 mm |
| Dimenzija C | 288 mm |
| Dimenzija H | 52 mm |
| Za širinu kabelske ploče | 125 mm |
| Za visinu kabelske police | 50 mm |

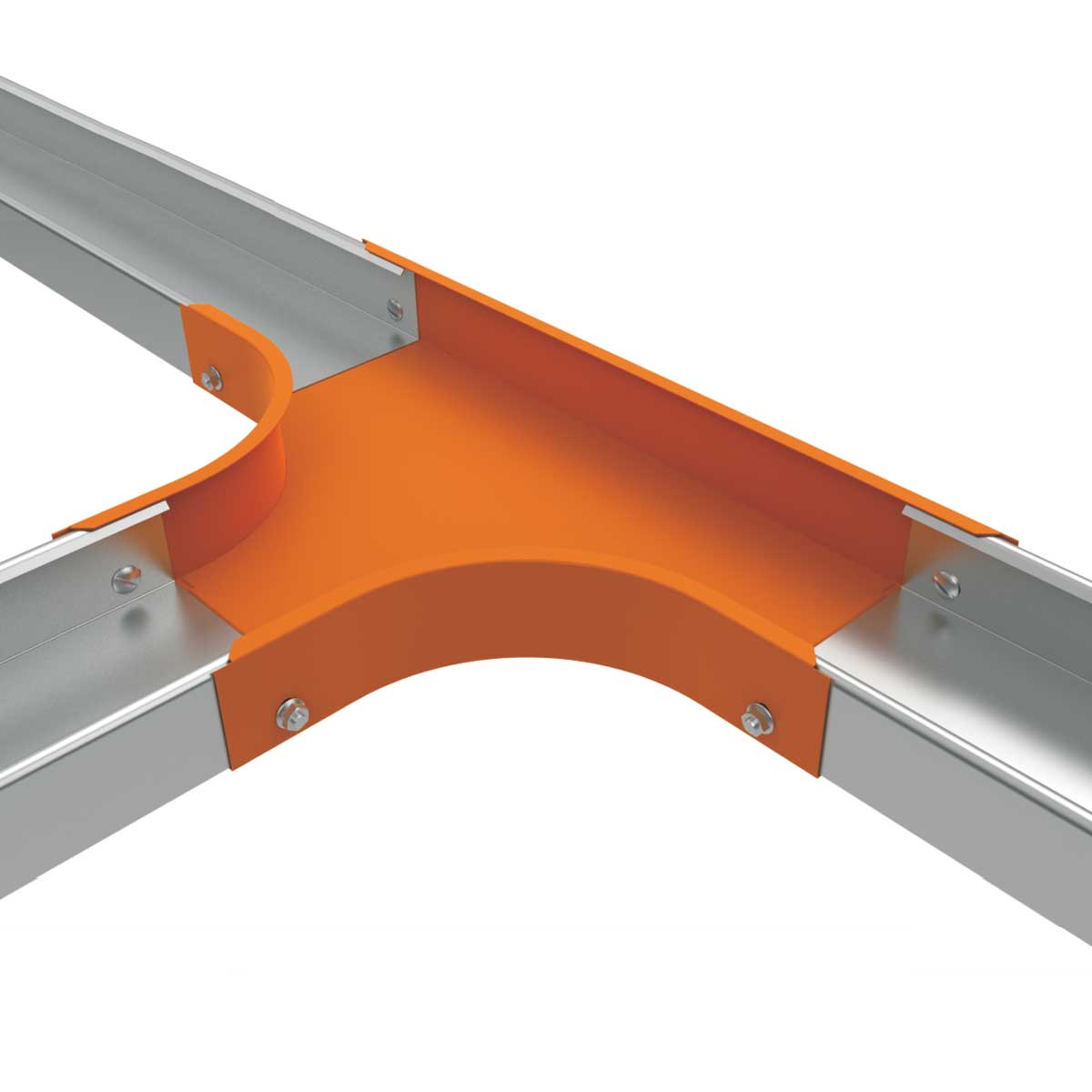

The connection is performed by direct sliding of the cable tray into the shaped piece and subsequent securing with bolts NIXSM 6X10.
