NIXO90_EN
| EAN kod | 8595057671492 |
| Tarifni broj | 73089059 |
| Težina | 3,0700 kg/pcs |
| Površinska obrada | Stainless steel AISI 304 |
| Otpornost na temperaturu | -50 - 150 °C |
| Standardi | ČSN EN 61537 |
| Debljina metala | 0,8 mm |
| Količina vijaka za spajanje | 8 |

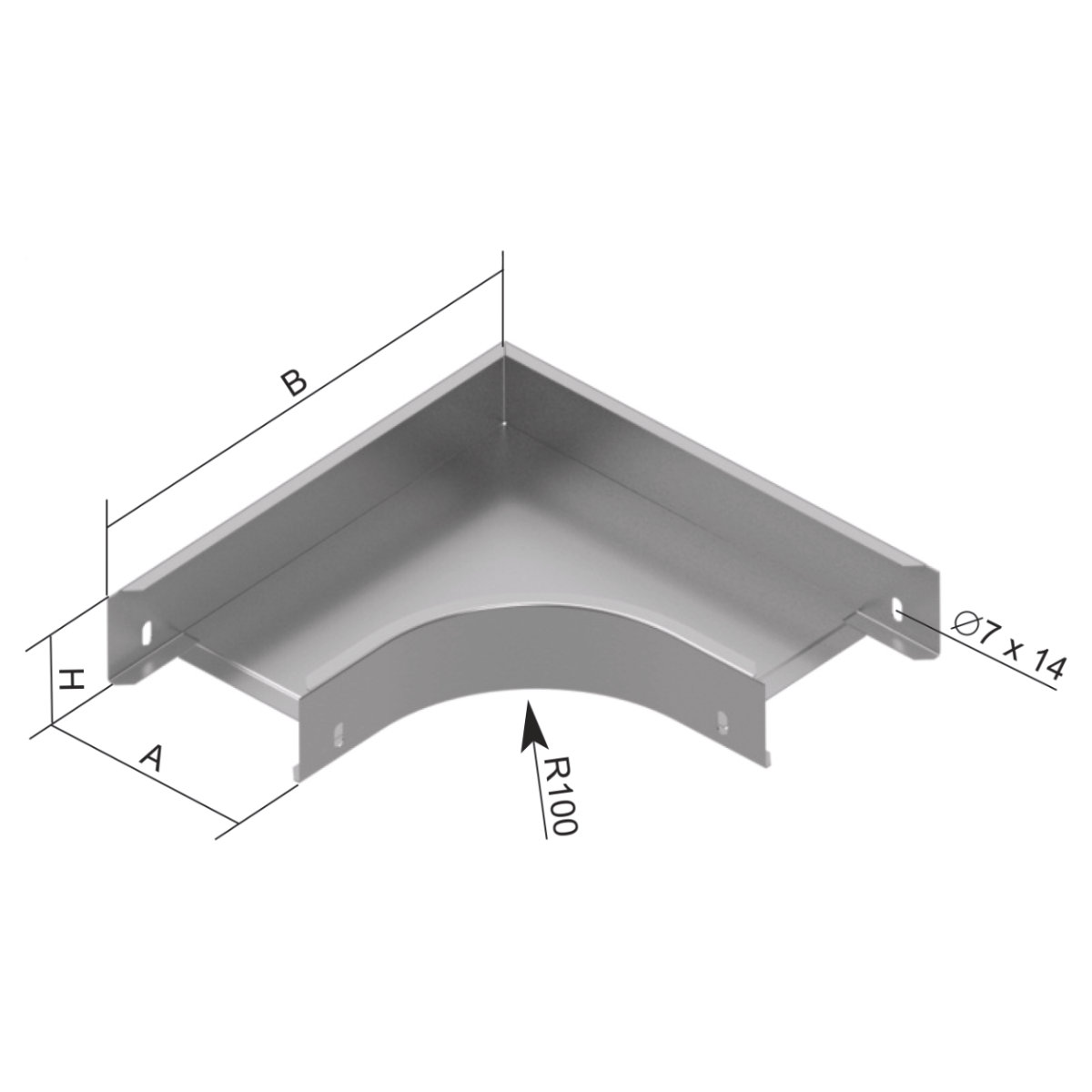

| Dimenzija A | 503 mm |
| Dimenzija B | 663 mm |
| Dimenzija H | 102 mm |
| Za širinu kabelske ploče | 500 mm |
| Za visinu kabelske police | 100 mm |

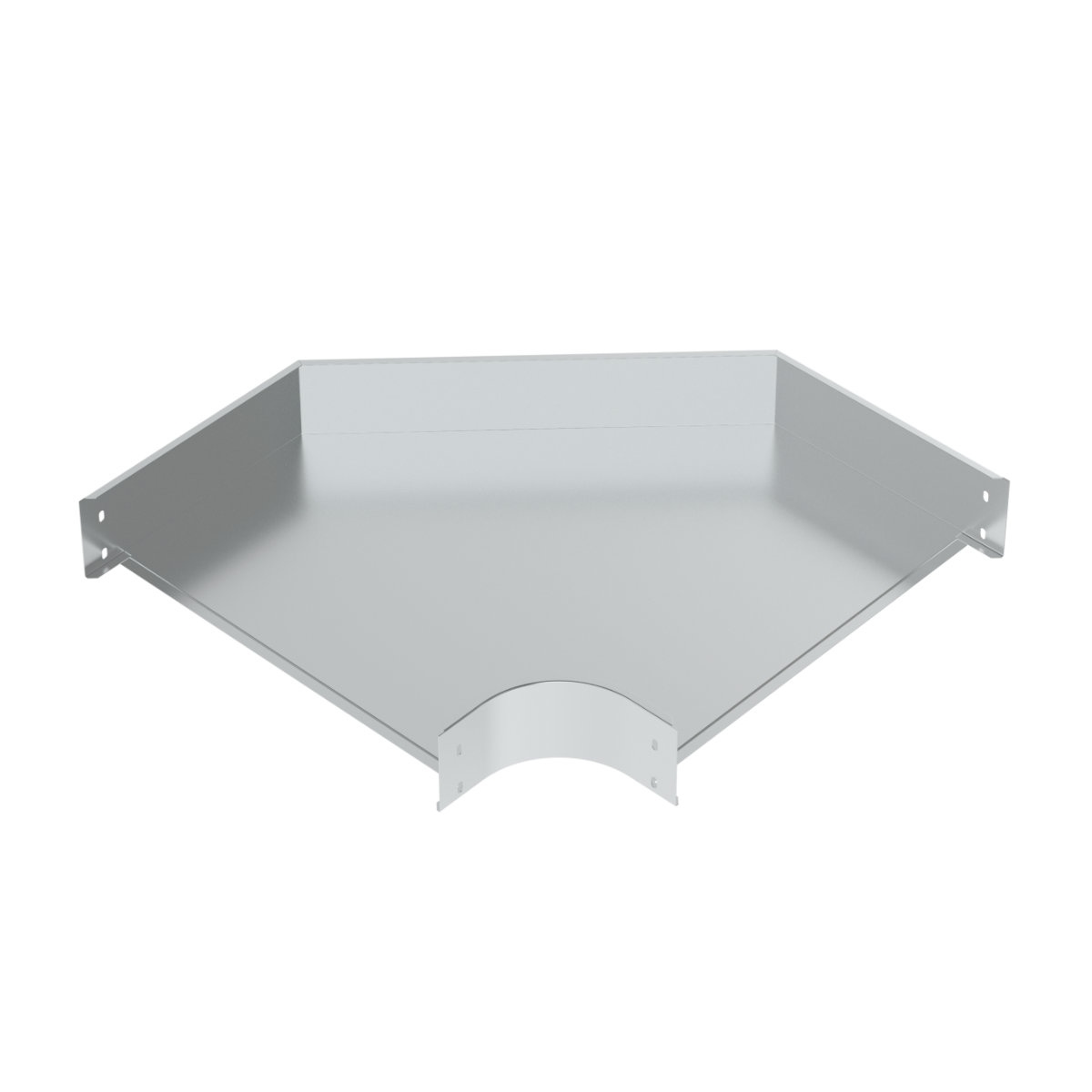

The arc is used to create a 90° branch in a horizontal direction. The connection is performed by direct sliding of the cable tray into the shaped piece and subsequent securing with bolts NIXSM 6X10. On the NIXO 90X100X500 arc the outer right angle of the sides is replaced by a chamfer.
