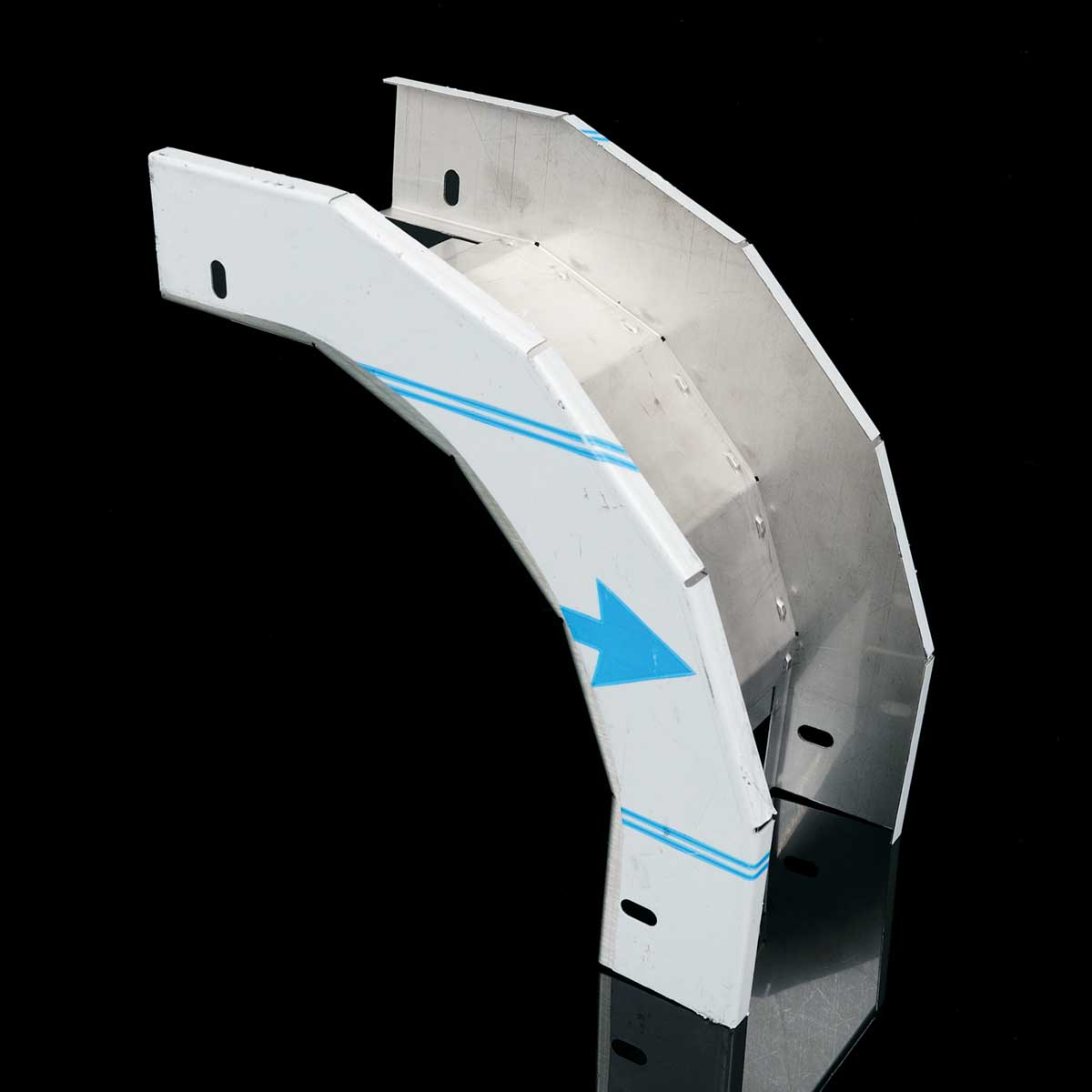

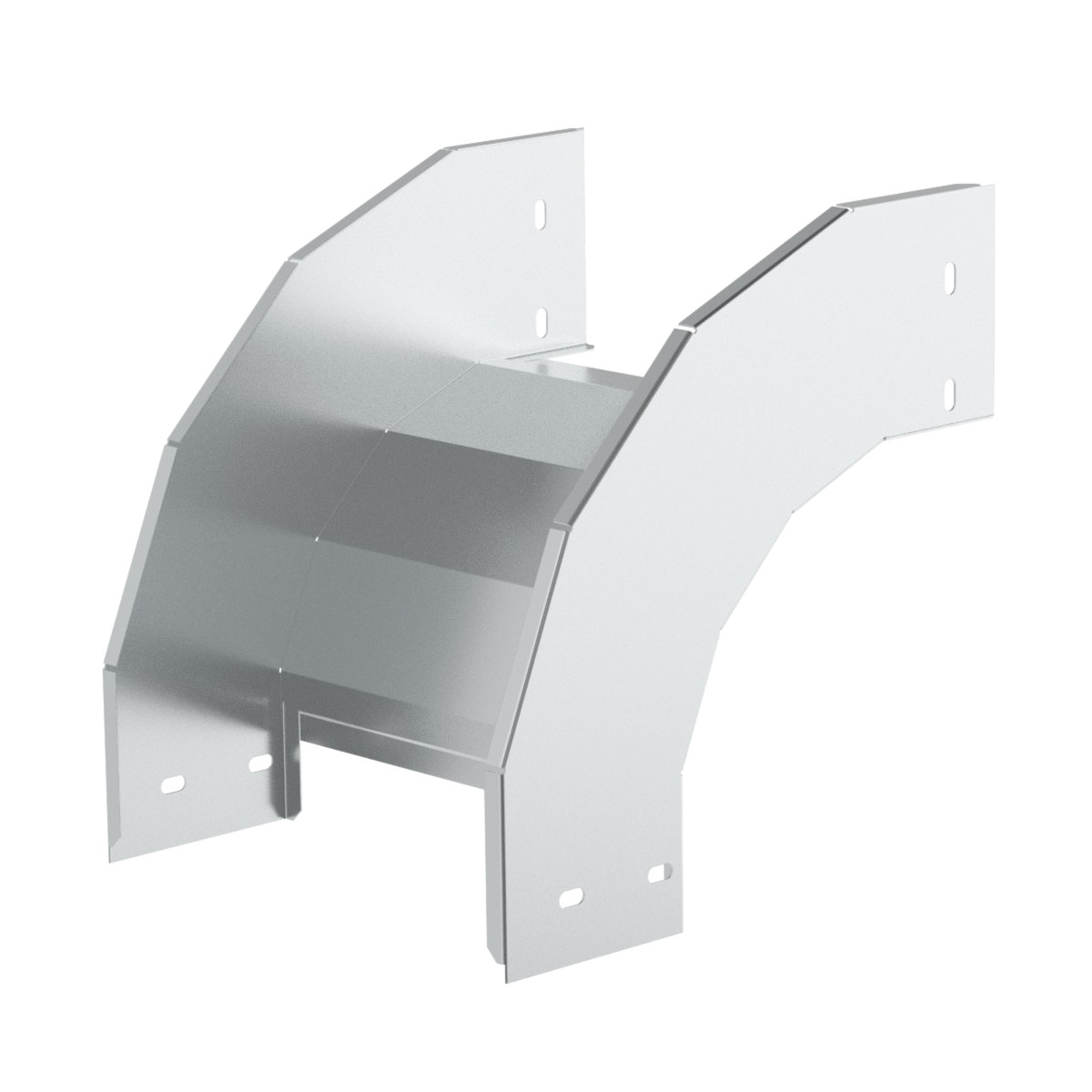

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
NIXKO90_EN
| EAN kod | 8595057670204 |
| Tarifni broj | 73089059 |
| Težina | 0,9800 kg/pcs |
| Površinska obrada | Stainless steel AISI 304 |
| Otpornost na temperaturu | -50 - 150 °C |
| Standardi | ČSN EN 61537 |
| Debljina metala | 0,8 mm |
| Količina vijaka za spajanje | 8 |

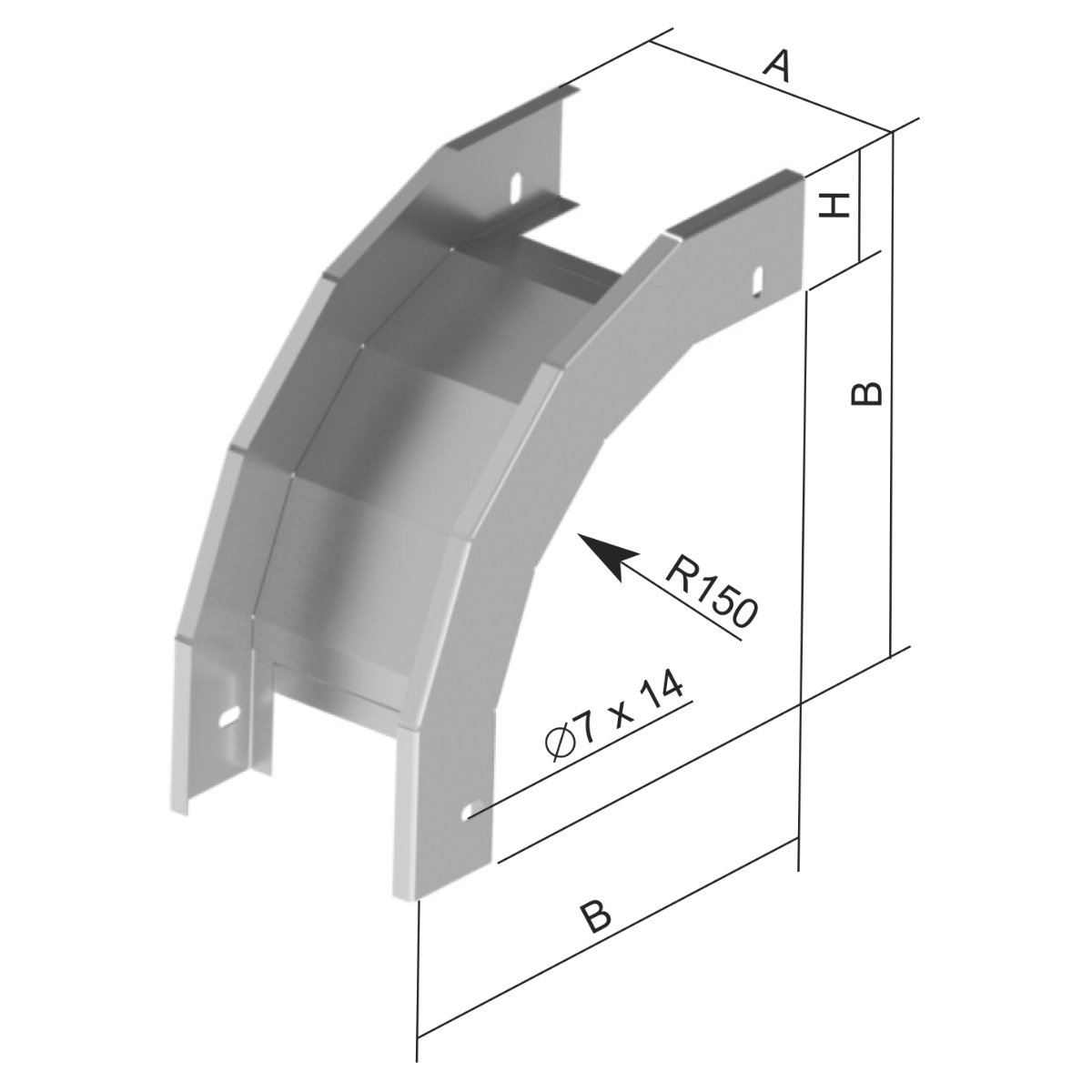

| Dimenzija A | 253 mm |
| Dimenzija B | 290 mm |
| Dimenzija H | 102 mm |
| Za širinu kabelske ploče | 250 mm |
| Za visinu kabelske police | 100 mm |

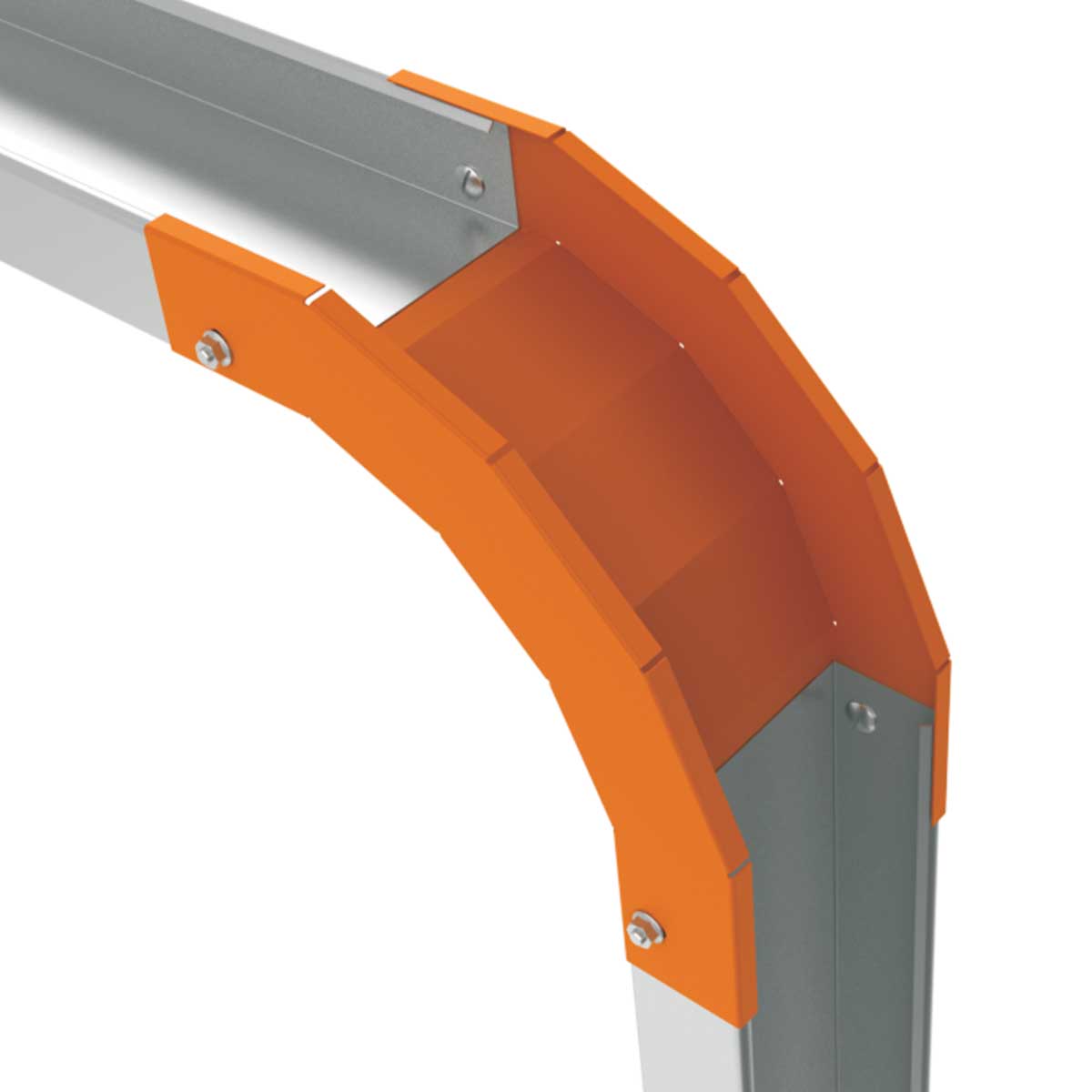

The connection is performed by direct sliding of the cable tray into the shaped piece and subsequent securing with bolts NIXSM 6X10.
