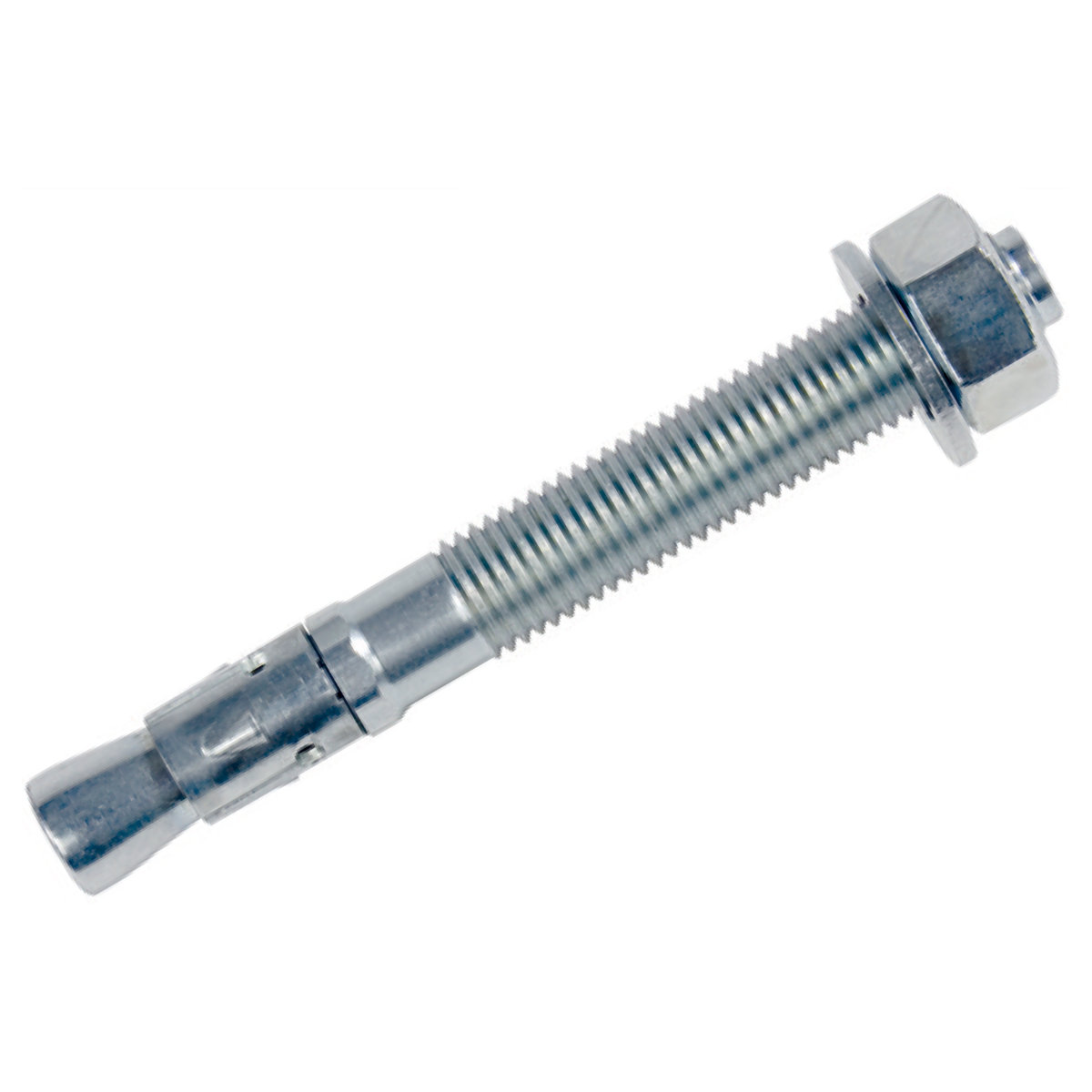

Ilustrativni prikaz
KPO_EN
| EAN kod | 8595057691148 |
| Tarifni broj | 73181900 |
| Težina | 0,1082 kg/kom |
| Materijal | steel |
| Površinska obrada | Pre-Galvanized |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Vrsta niti | M12x61 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Dubina sidra | 65 mm |
| Maks. debljina pričvrsnog materijala | 20 mm |
| Min. dubina bušenja | 90 mm |
| Minimalna dubina otvora za prolaznu montažu | 100 mm |
| Promjer otvora | 12 mm |
| Ukupna dužina sidra | 110 mm |
| Veličina ključa | 19 |
| Najveća korisna duljina | 10 mm |
The anchors are designed for drag and thus fastening the structural elements to the underlying material (non-cracked concrete C20/25 to C50/60), a natural stone with a solid structure. The loading capacity of the anchors depends on the quality of the base material (concrete, solid brickwork).
Note for system with maintained functionality in fire:
Anchors serve for the attaching of construction elements to the base material (concrete, stone).
You find more information in the catalogue Systems with maintained functionality in fire.
