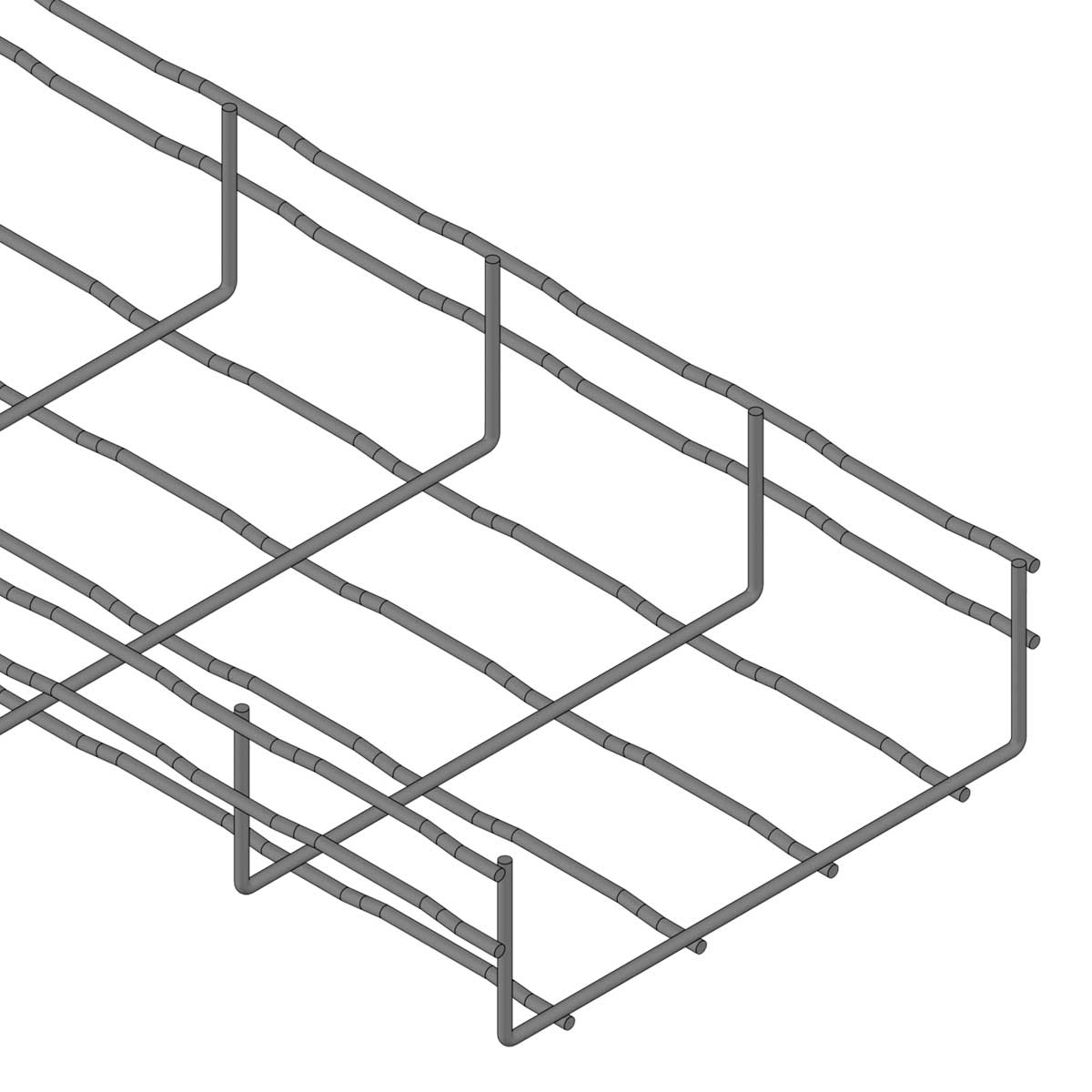

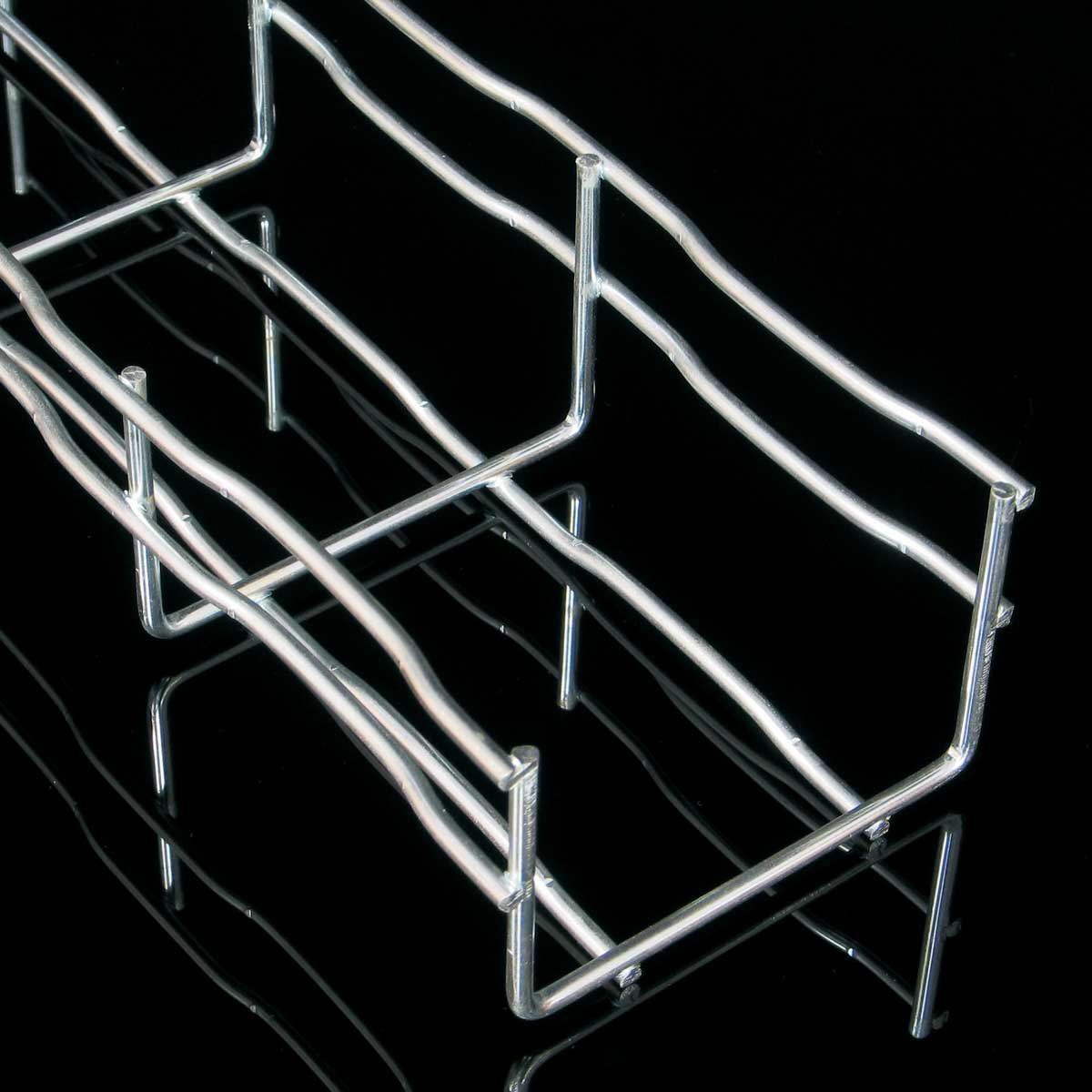

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
DZ_EN
| EAN kod | 8595568903167 |
| Tarifni broj | 73262000 |
| Težina | 0,6000 kg/m |
| Površinska obrada | Hot Dip Galvanized |
| Širina | 60 mm |
| Visina | 60 mm |
| Dužina | 3000 mm |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi | ČSN EN 61537 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Promjer žice | 3,6 mm |
| Maks. opterećenje za vatrootpornost | 5 - 10 kg |
Wire cable trays are joined using the coupling DZS/B. Trays can be connected using the quick coupling DZRS/B or using the connection reinforcement plate DZSP/B.
Note for system with maintained functionality in fire:
Wire cable trays are joined using the coupling DZS/B.
You find more information in the catalogue Systems with maintained functionality in fire.
