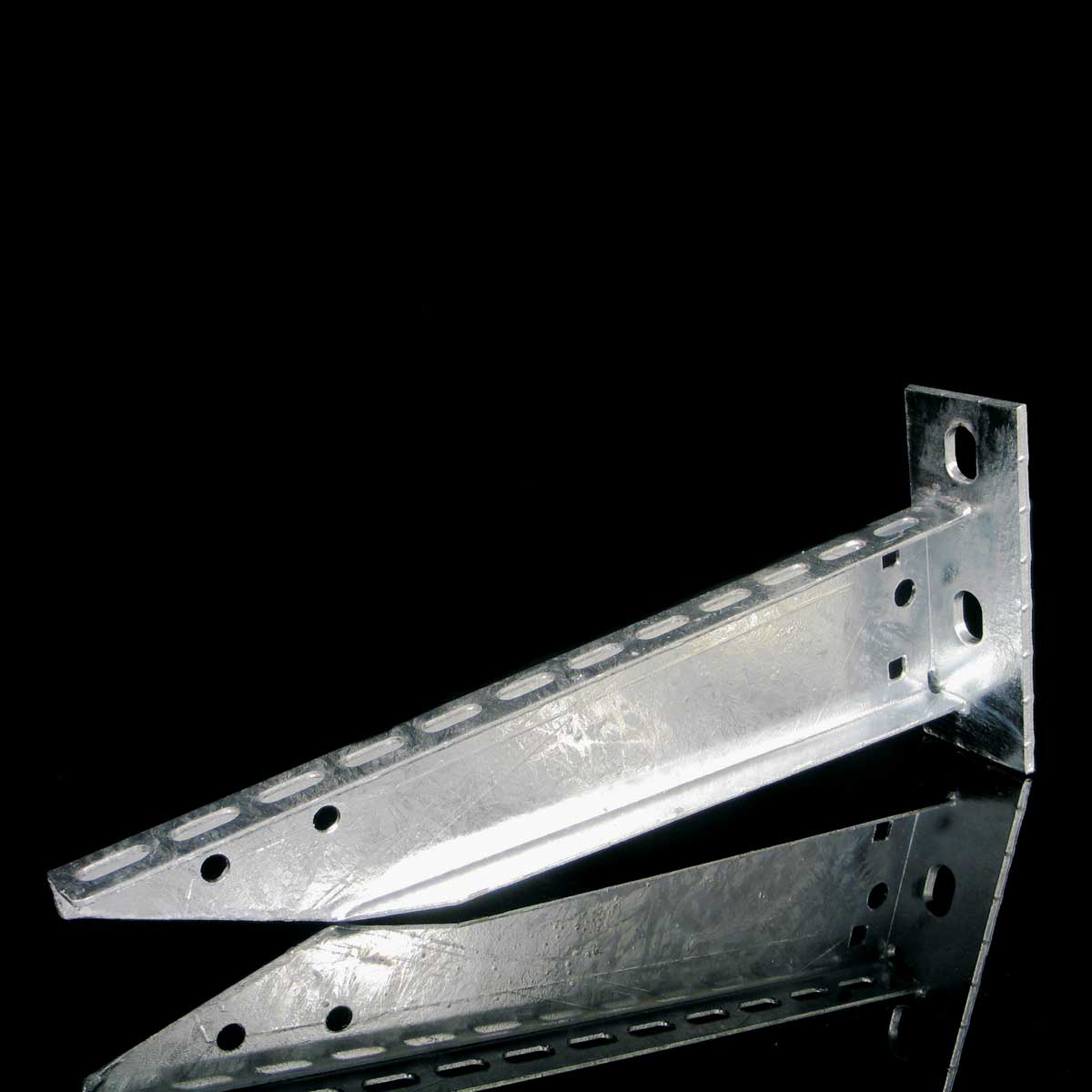

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
DT_EN
| EAN kod | 8595057639911 |
| Tarifni broj | 83024190 |
| Težina | 2,4000 kg/pcs |
| Površinska obrada | Hot Dip Galvanized |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Maksimalno opterećenje | 200 kg |
| Dimenzija A | 1020 mm |
| Dimenzija B | 155 mm |
| Dimenzija C | 90 mm |
| Za širinu kabelske ploče | 1000 mm |
| Za visinu kabelske police | 35 - 110 mm |
| Maks. opterećenje za vatrootpornost | 10 - 20 kg |
The holder is designed to be mounted on a wall or a ceiling profile. For assembly to the ceiling profile SPL and SPS there are used the sliding nuts PM 41 M 10 together with the bolts S 10X20 (2 pcs). Fix to the celling profile SPLN, SPSN or SPU using bolts S 10X20, nuts M 10 and washer PD 10. Cable tray attaching to the bracket DT is carried out by bolts NSM 6X10.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
