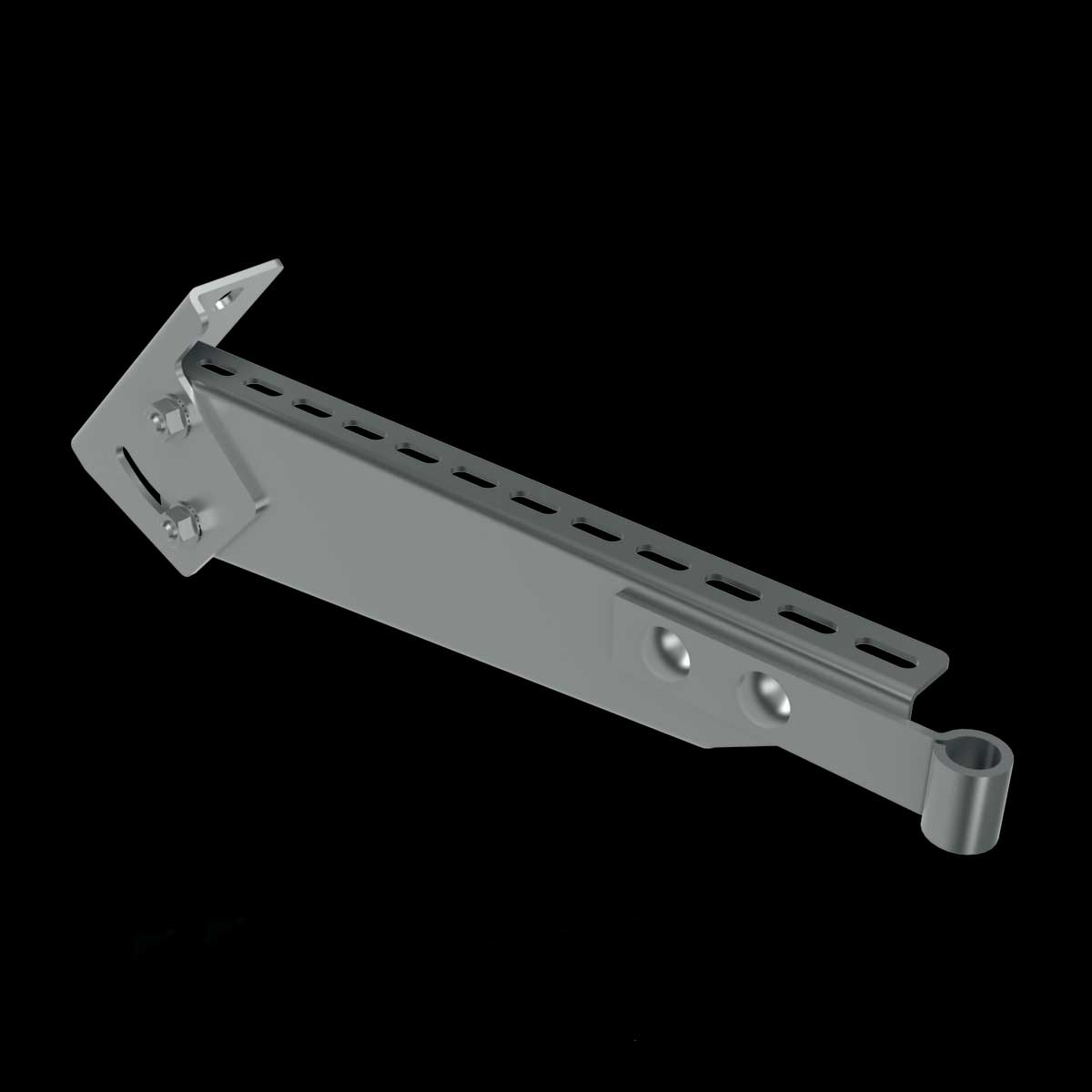

Ilustrativni prikaz
DSU_PO_EN
| EAN kod | 8595568925787 |
| Tarifni broj | 83024190 |
| Težina | 0,8100 kg/pcs |
| Površinska obrada | Hot Dip Galvanized |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Dimenzija A | 324 mm |
| Dimenzija B | 45 mm |
| Dimenzija C | 102 mm |
| Za širinu kabelske ploče | 200 mm |
| Za visinu kabelske police | 60 mm |
| Maks. opterećenje za vatrootpornost | 10 kg |
Note for system with maintained functionality in fire:
The bracket allows cable trays to be fixed to sloping structures up to a 45° angle.
The goods are delivered exclusively on order.
You find more information in the catalogue Systems with maintained functionality in fire.
