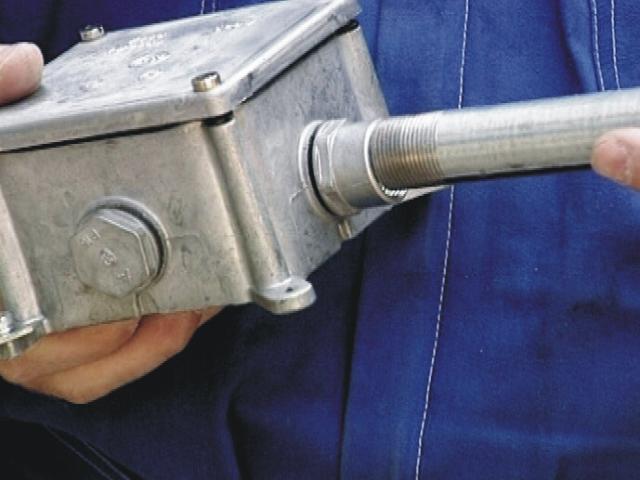

Ilustrativni prikaz
7216C_EN
| EAN kod | 8595057689558 |
| Tarifni broj | 85381000 |
| Težina | 0,5750 kg/pcs |
| Materijal | Al |
| Otpornost na temperaturu | -25 - 70 °C |
| Mehanička zaštita | IK10 |
| Širina | 96 mm |
| Visina | 96 mm |
| Dubina | 64 mm |
| Promjer otvora za ugradnju | 6 mm |
| Klasa reakcije na požar podložnog materijala | A1 - D |
| Proširivanje reakcije na vatru temeljnog materijala Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1 | |
| Vrste zaštite | IP 54 |
| Opis paketa | the glands for threaded pipes M20 |

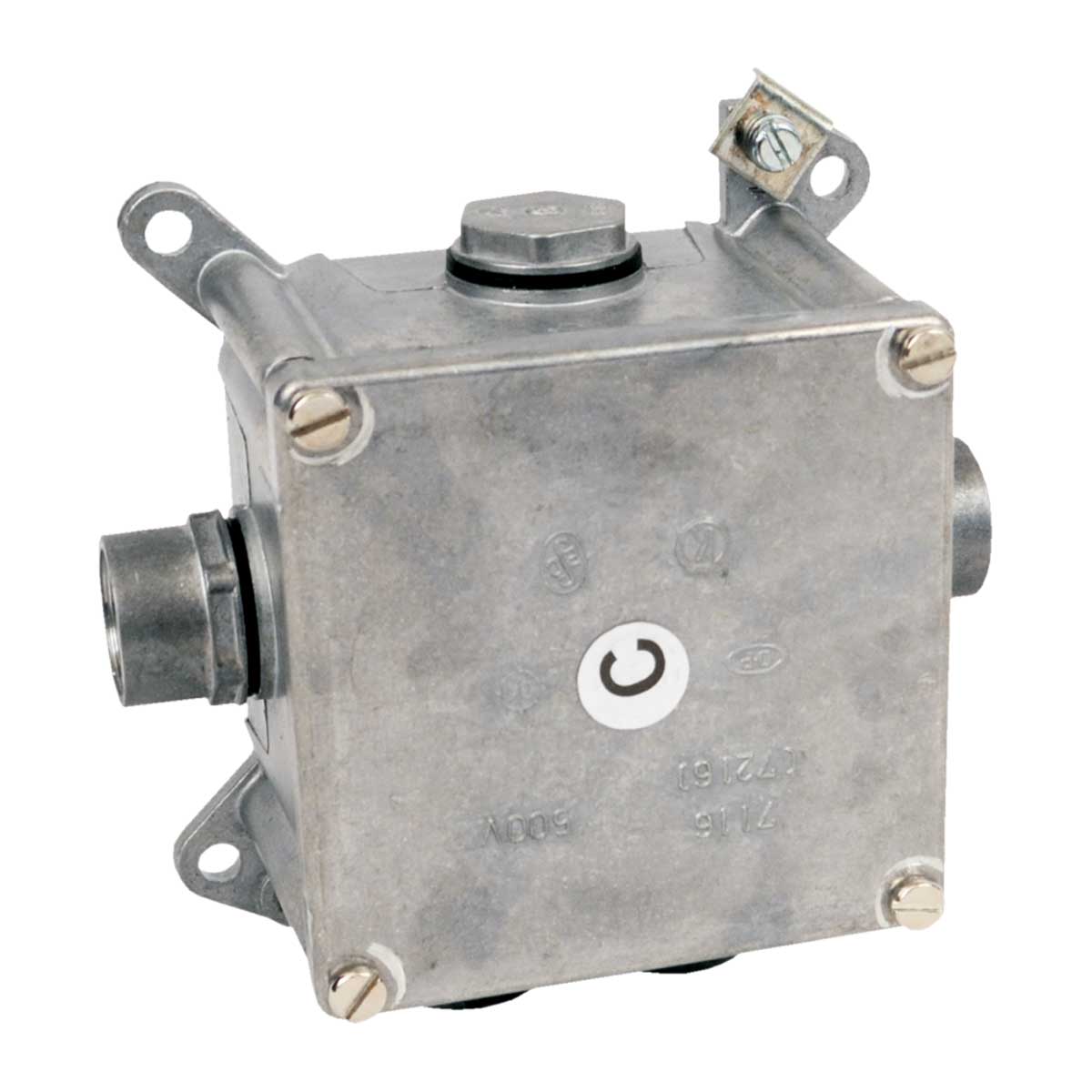

Boxes for piping with steel threaded or metal flexible pipes. Three glands and one plug evenly distributed on the sides of the box. Terminal plate is not included in the box.7216 C: without protective terminal for installation in TNC networks.
