Ilustrativni prikaz
KOPOHALF_EN
| EAN kod | 8595057651807 |
| Tarifni broj | 39172390 |
| Težina | 4,6000 kg/m |
| Boja | blue |
| Materijal | HDPE |
| Bezhalogeni materijal | yes |
| Temperatura ugradnje | -25 - 90 °C |
| Radna temperatura | -55 - 90 °C |
| Mehanički otpor | 750 N/20 cm |
| Dužina | 3 m |

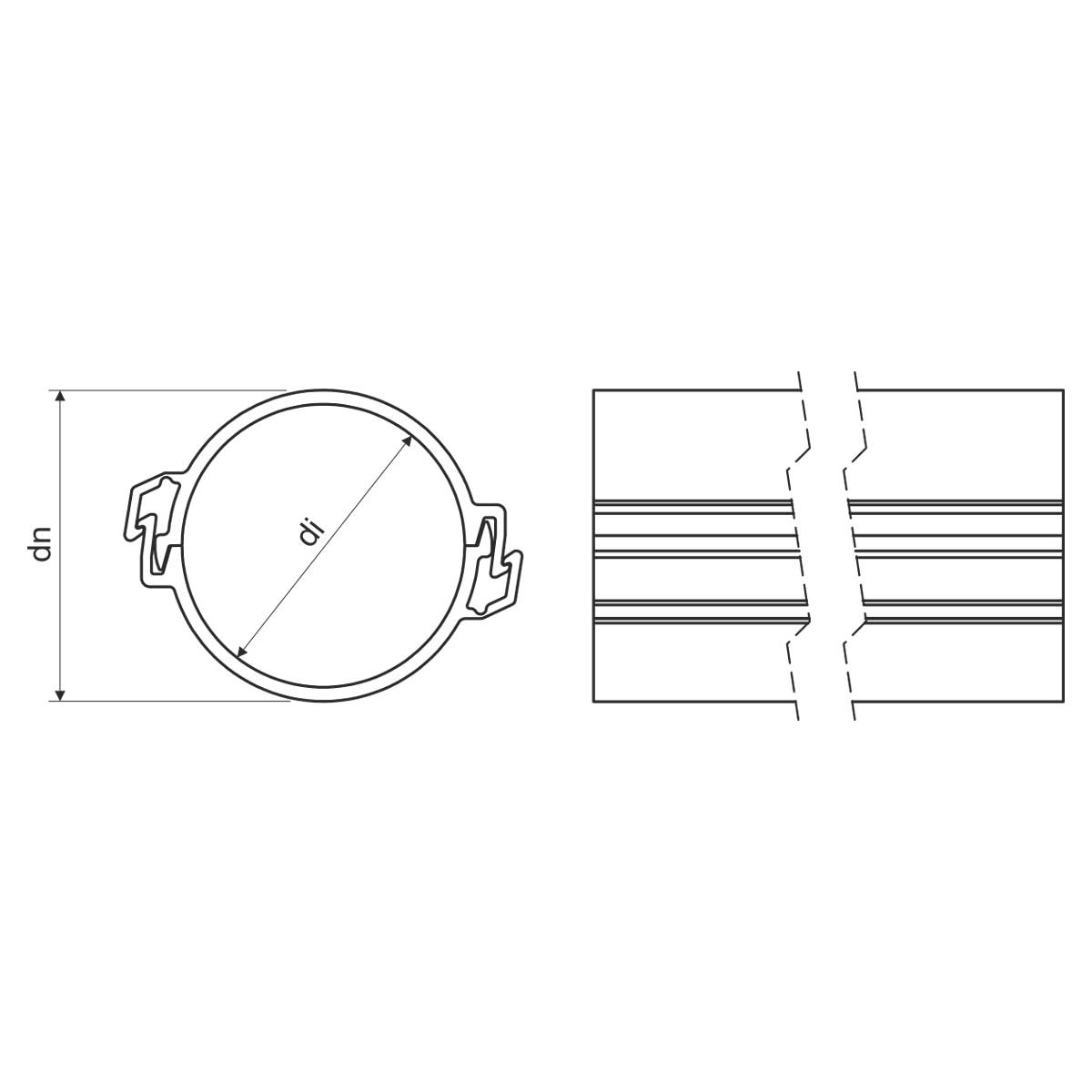

| Vanjski promjer | 160 mm |
| Unutarnji promjer (min.) | 136 mm |
| Tolerancija | length ± 10 mm |
| Klasa reakcije na požar podložnog materijala | A1 |
| Vrste zaštite | IP 30 |
| Standardi | ČSN EN 61386-24 |
| Opis paketa | in distributed position |
Cable laying and for a laying-out of the energy and communication lines. Another possible application is a protection of already installed underground cables. The protectors consist of two identical parts. When installing, the cables are put in the bottom part and then the top part is snapped to the bottom one. Connecting of protectors is performed by overlapping joined lower parts with an upper part at length of approximately 30 cm. The divided cable ducts are manufactured and tested in accordance with standard ČSN EN 61386-24.
