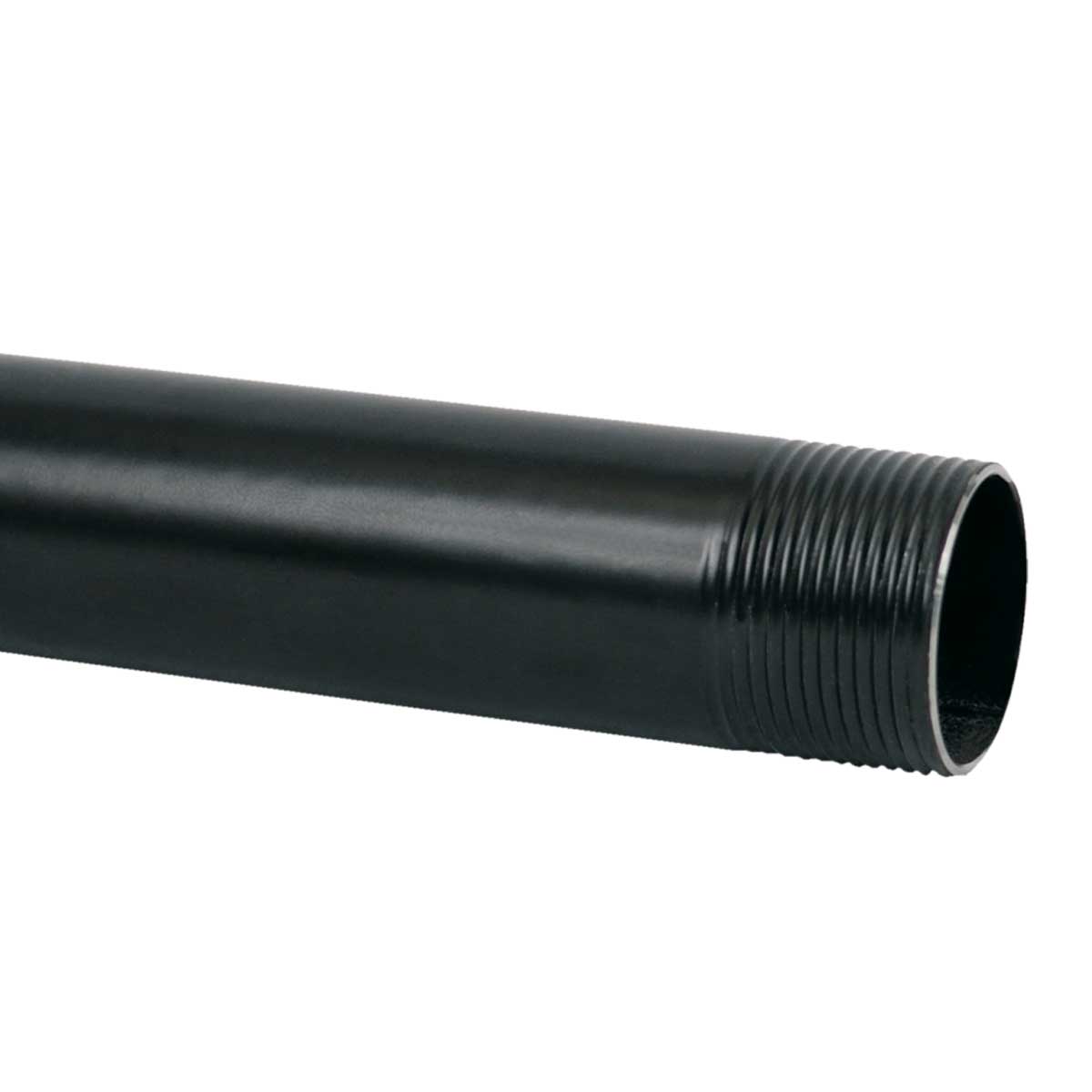

Steel threaded pipes painted in black on both sides (EN)

Prilozi i certifikati

Ilustrativni prikaz

6016E ECZ - ocelová trubka závitová oboustranně lakovaná (EN)

tehnički list
trubky60xx_EN_PO_EN
trubka_ocel_EN_zavit_EN

certifikat
Certificate ESČ
Conformity declaration
Declaration RoHS
Declaration REACH

certifikat održavanje funkcije u požaru
Certification report DIN
Certificate DIN
Conformity declaration DIN
Izjava o sukladnosti DIN

EAN kod	8595057634152
Tarifni broj	73063041
Težina	0,5300 kg/m
Boja	black
Materijal	steel
Površinska obrada Varnished ECZ: smooth steel material painted on both sides black, medium corrosion resistance - Group 2
Otpornost na temperaturu	-45 - 250 °C
Mehanički otpor	4000 N/5cm
Mehanička zaštita	IK10
Dužina	3 m
Vanjski promjer	16 mm
Unutarnji promjer (min.)	12,2 mm
Funkcionalnost u požaru	P90-R, E90, PS90
Vrsta niti	M16 x 1,5
Kôd sortiranja	55561
Standardi	ČSN EN 61386-1 ed.2
Standardi otpornosti na vatru	ČSN 73 0895, DIN 4102-12, STN 92 0205

The pipes are suitable for mechanical protection of conductors and cables. Threaded conduits are supplied with one coupler. While using pipes along with bushing 4813/P - 4842/P and 4913 - 4942 is scope of application only -5 - +60 °C.
