Ilustrativni prikaz
adaptalok_EN
| EAN kod | 8595057625822 |
| Tarifni broj | 39174000 |
| Težina | 0,0090 kg/pcs |
| Boja | black |
| Materijal | PA |
| Bezhalogeni materijal | yes |
| UV Stabilno/UV stabilni materijal | yes |
| Samogasivi | 30 s |
| Otpornost na temperaturu | stable mounting: -50 to + 120 ° C; flexible mounting: -45 to +120 ° C |
| Promjer cijevi | 20 mm |
| Bilješka Combination of accessories and pipes is always controlled by outside diameter of the pipe used. | |
| Područje s opasnošću od eksplozije Can be installed in a zone with the danger of explosion of flammable gases and vapors of zone 2 and into the zone of danger of explosion of flammable dusts of zone 22. | |
| Vrste zaštite | IP 66 |
| Standardi | ČSN EN 61386-24 |

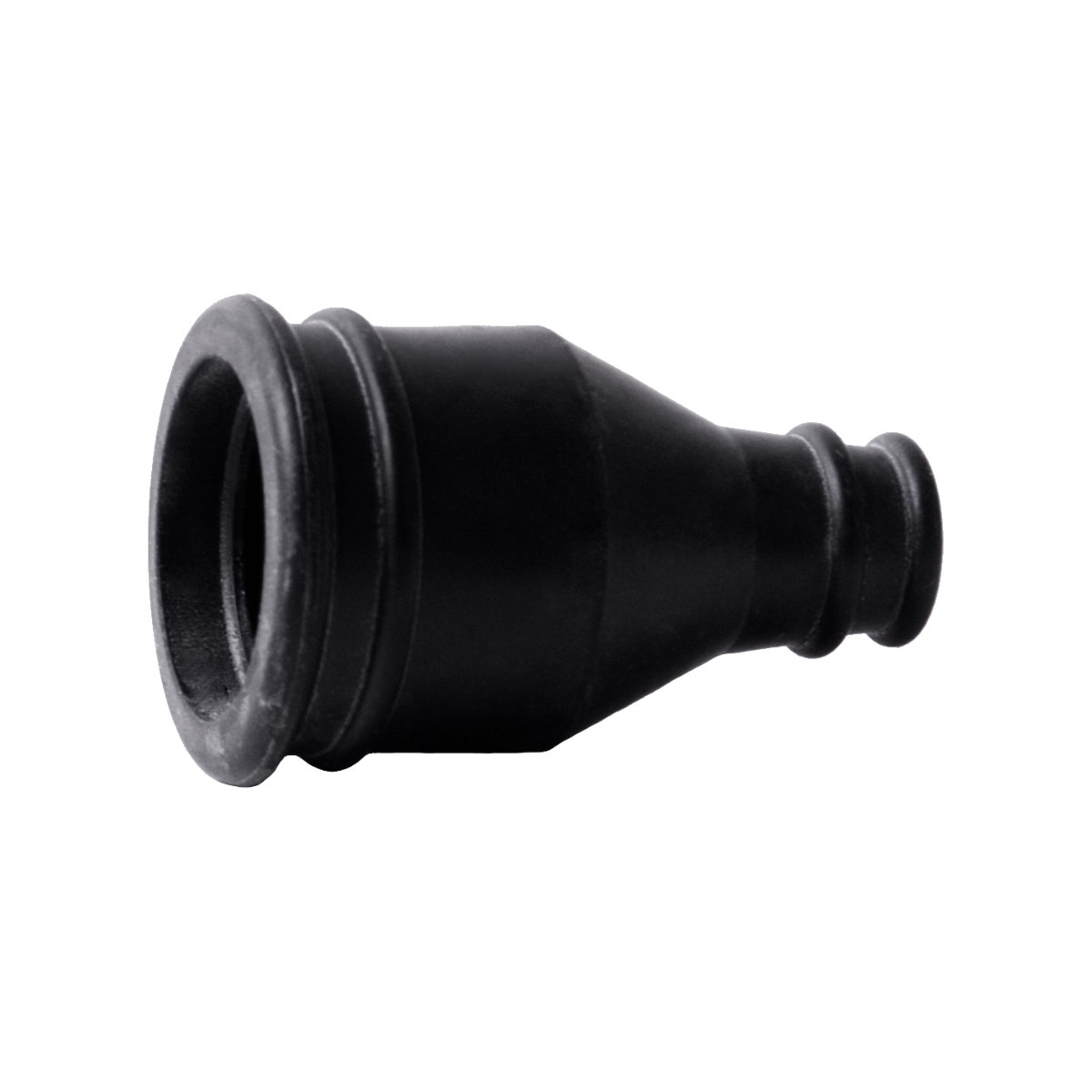

Adaptalok is a system of utilities allowing to terminate and fix the pipe. Utilities allow 45° and 90° tapping and direct threaded termination - M16 - M50 or PG13,5 - PG48. pipe termination is available as for flange as well. Installation and removal is easy and quick.
