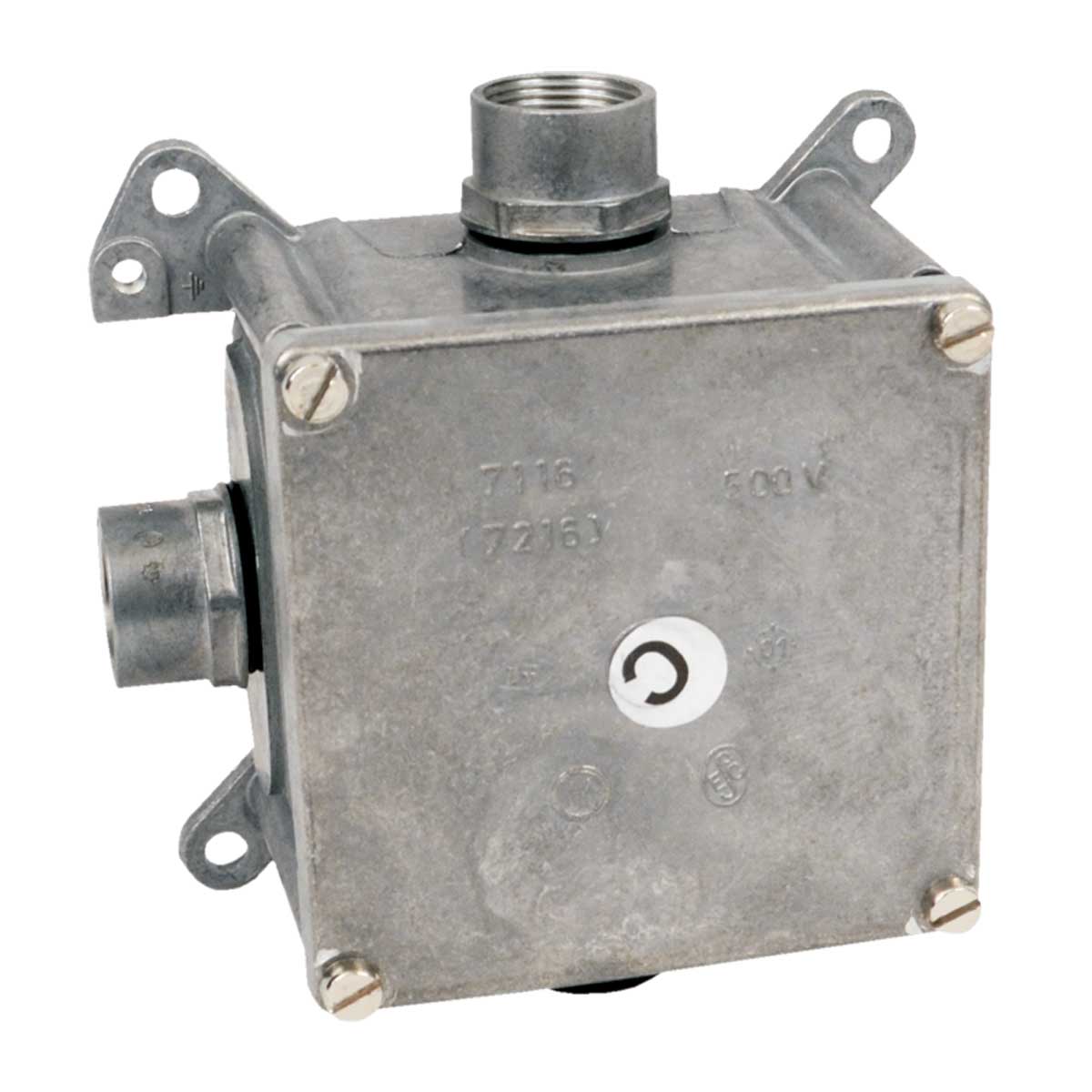

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
7116B_EN
| EAN kod | 8595057604124 |
| Tarifni broj | 85381000 |
| Težina | 0,5750 kg/pcs |
| Materijal | Al |
| Otpornost na temperaturu | -25 - 70 °C |
| Mehanička zaštita | IK10 |
| Širina | 96 mm |
| Visina | 96 mm |
| Dubina | 64 mm |
| Promjer otvora za ugradnju | 6 mm |
| Klasa reakcije na požar podložnog materijala | A1 - D |
| Proširivanje reakcije na vatru temeljnog materijala Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1 | |
| Vrste zaštite | IP 54 |
| Opis paketa | the glands for threaded pipes P16 |
Boxes for piping with steel threaded or metal flexible pipes. Three glands and one plug evenly distributed on the sides of the box. Terminal plate is not included in the box. 7116 B: fitted with a clamp for installation in TNS networks.
