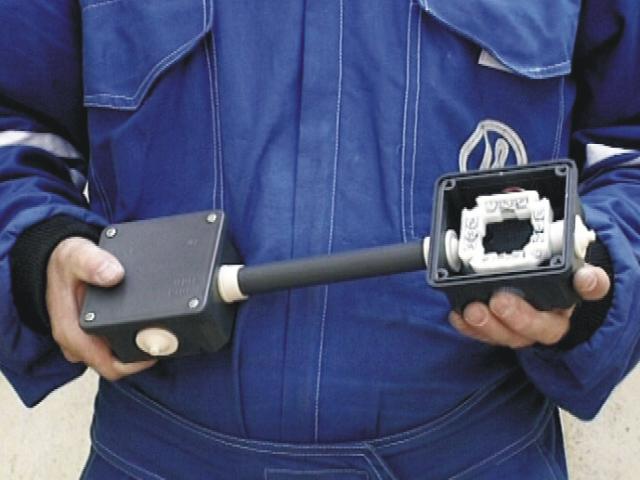

Ilustrativni prikaz
8118_EN
| EAN kod | 8595057603400 |
| Tarifni broj | 85381000 |
| Težina | 0,6250 kg/pcs |
| Boja | dark grey RAL 7012 |
| Materijal | PVC |
| Materijal bez ulja | yes |
| Samogasivi | 30 s |
| Nazivni napon | <= 400 V |
| Nazivna struja | <= 16 A |
| Otpornost na temperaturu | -5 - 60 °C |
| Probna petlja | 850 °C |
| Širina | 165 mm |
| Visina | 165 mm |
| Dubina | 70 mm |
| Klasa reakcije na požar podložnog materijala | A1 - D |
| Proširivanje reakcije na vatru temeljnog materijala Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1 - F | |
| Vrste zaštite | IP 54 |
| Standardi | ČSN EN 60 670-1 |
| Opis paketa the grommets, terminal plates, screws for mounting lid and terminal plates inserted in the box, each box is packed in a shrink foil and labeled | |
For installation in environment with increased humidity, dust, chemical and corrosion resistance in environments with increased risk of mechanical damage. Universal grommets for cables and pipes, grommets can be ordered separately. To install on materials with fire classes E or F, use thermally insulating pad.
