EAN kod8595568940940
Tarifni broj85366990
Težina0,0398 kg/pcs
Bojablack
MaterijalPC-ABS
Nazivni napon250 V
Nazivna struja16 A
Širina45 mm
Visina45 mm
Dubina40 mm
Upotreba
PK 90X55 D, PK 120X55 D, PK 160X65 D, PK 210X70 D
Vrste zaštiteIP 20
Zatezni moment0,6 Nm

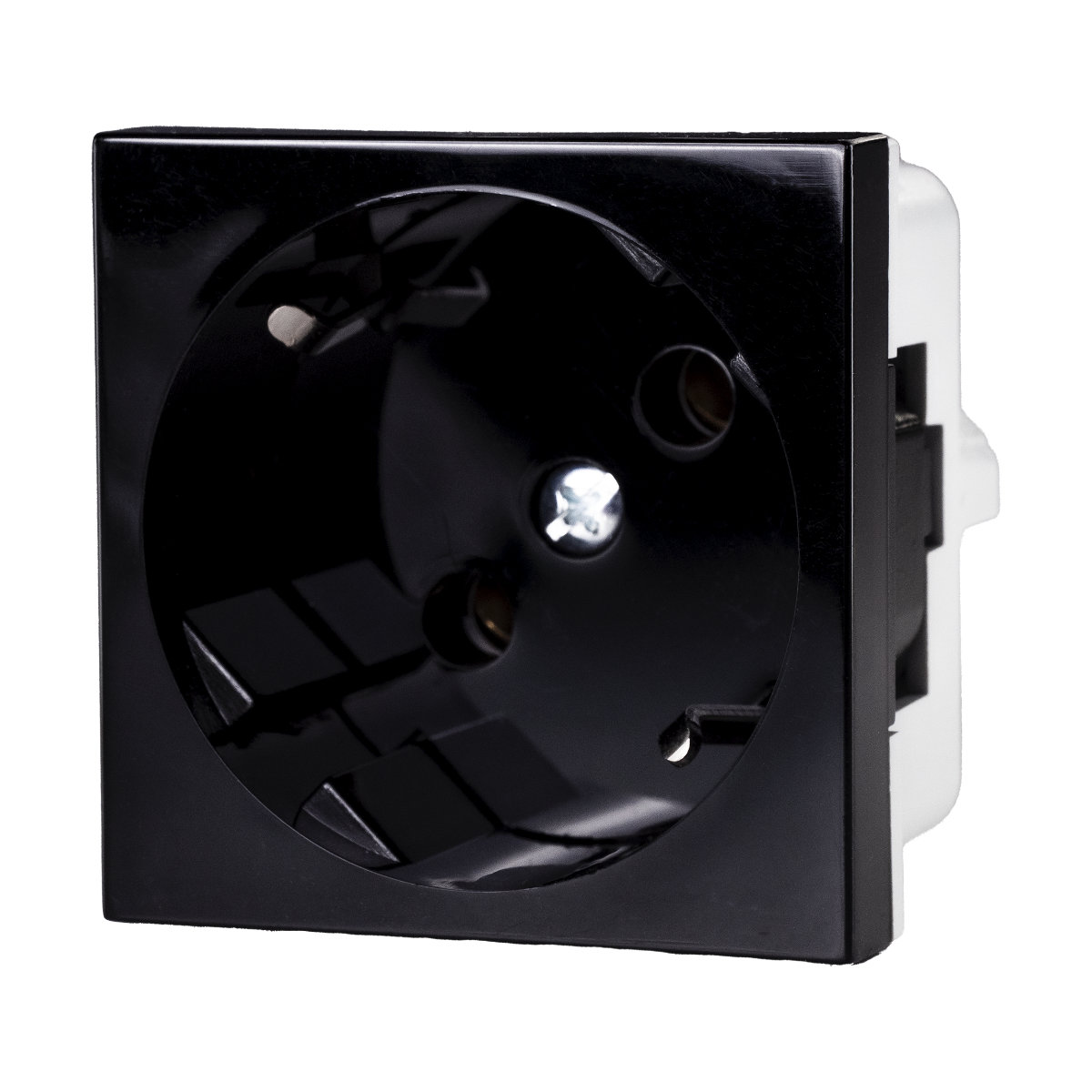

For 1.5-2.5 mm2 Cu wires. The fixing of the conductor is performed by means of screws. Installation by snap-on movement only. The socket modules can continuously connect, max. is determined by the parapet trunkings or boxes series KOPOBOX®. The use of the PIN system (with pin) and the SCHUKO system (with spring contacts) sockets should be according to the standards of each particular country.
