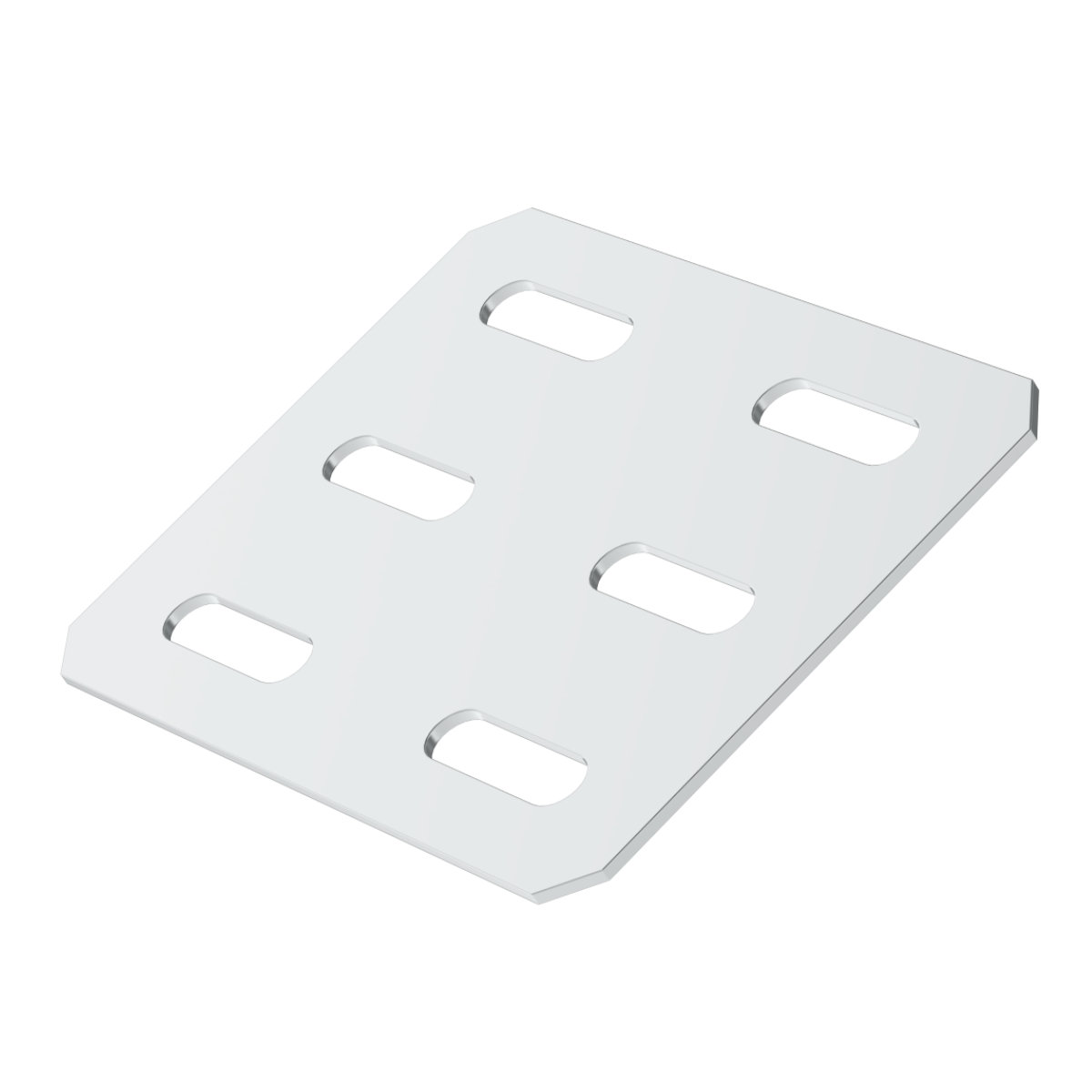

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
DV_EN
| EAN kod | 8595568939418 |
| Tarifni broj | 73269098 |
| Težina | 0,0786 kg/pcs |
| Površinska obrada | Magnelis® |
| Otpornost na temperaturu | -50 - 150 °C |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi | ČSN EN 61537 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Debljina metala | 1,5 mm |
| Količina vijaka za spajanje | 4 |
| Dimenzija H | 75 mm |
| Za širinu kabelske ploče | 100 mm |
Is used for reinforcing the tray connections without integrated coupling. It is fastened by the bolts NSM 6X10 to the tray bottom.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
