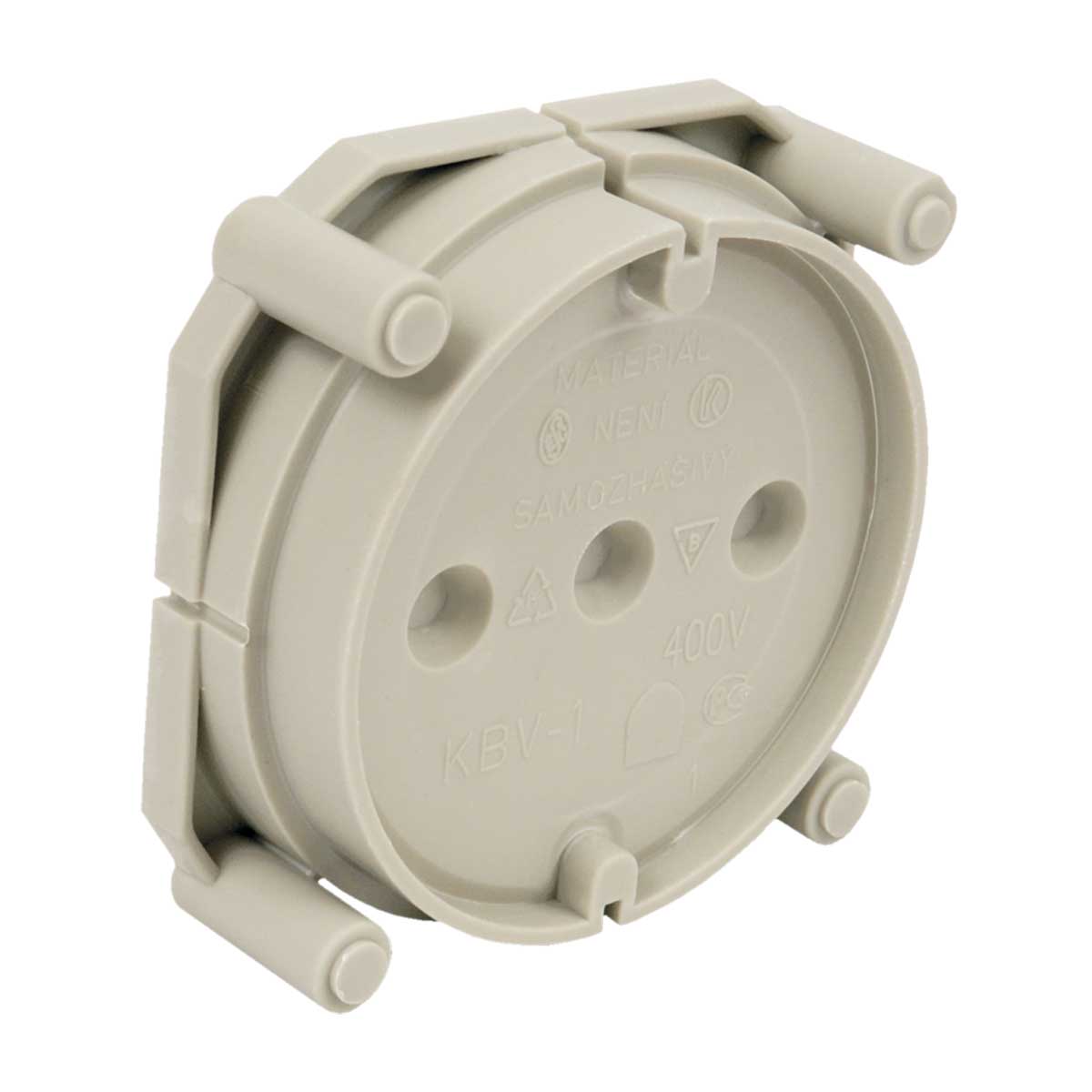

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
KBV1_EN
| EAN kod | 8595057632509 |
| Tarifni broj | 39259080 |
| Težina | 0,0323 kg/pcs |
| Boja | light grey |
| Materijal | PP |
| Bezhalogeni materijal | yes |
| Materijal bez ulja | yes |
| Nazivni napon | <= 400 V |
| Otpornost na temperaturu | -5 - 60 °C |
| Kratkotrajna otpornost na temperaturu | 90 °C |
| Probna petlja | 650 °C |

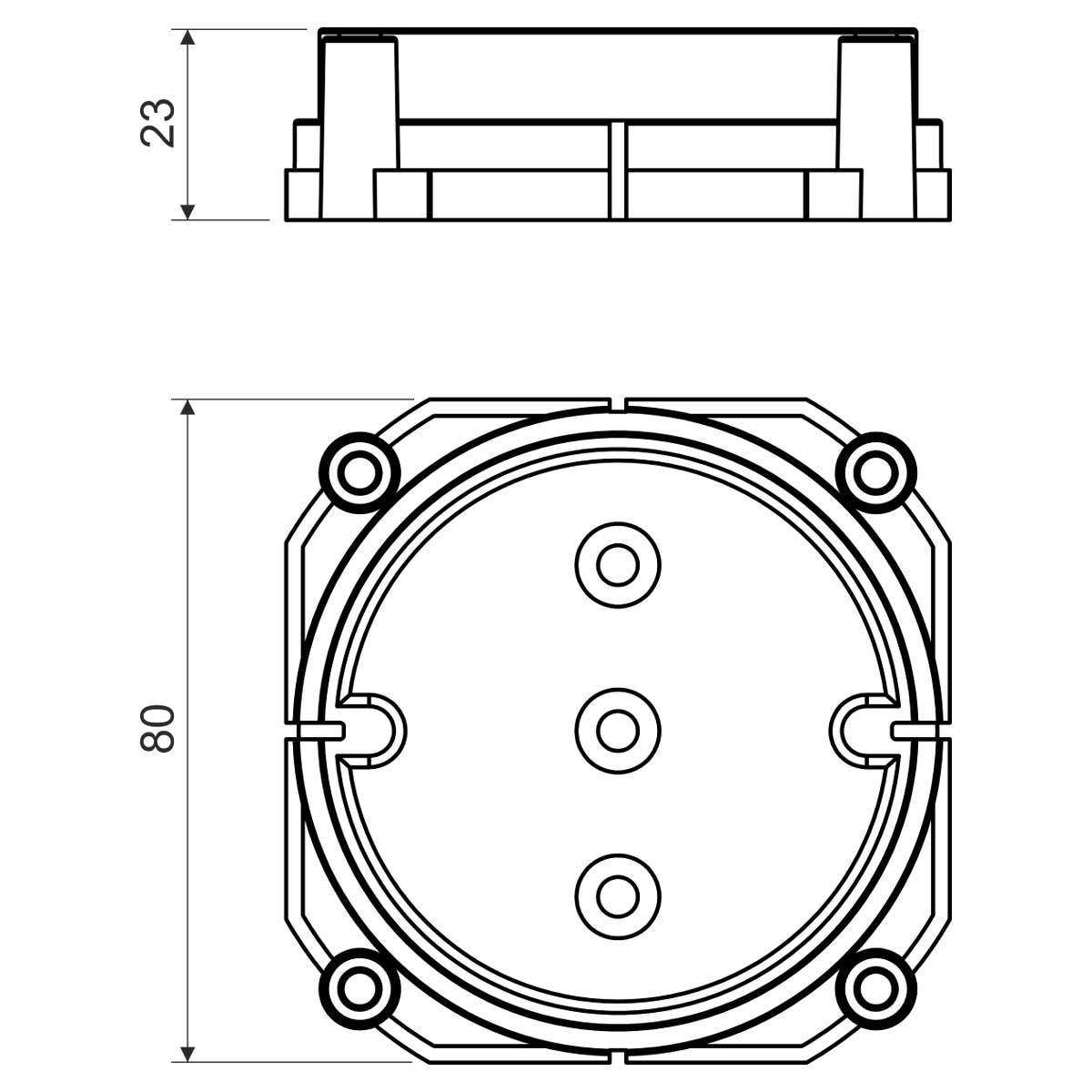

| Širina | 80 mm |
| Visina | 80 mm |
| Dubina | 23 mm |
| Klasa reakcije na požar podložnog materijala | A1 |
| Omogućava montažu dvostruke utičnice | yes |
| Standardi | ČSN EN 60 670-1 |
| Opis paketa | packed in shrink foil |
The lid can be attached to the formwork using nails. After hardening of the concrete, remove part of the rip-out part of the lid, making space for mounting. When applying additional stucco, blind cover ZV 68 can be used to cover it. To adjust the height when applying additional plaster, you can use extending frame NR 68/6, NR 68/100 (KBV-1), or NRB 60/12 and NRB 60/24 (KBV-2). For the double-socket the KBV-1 lid is suitable.
