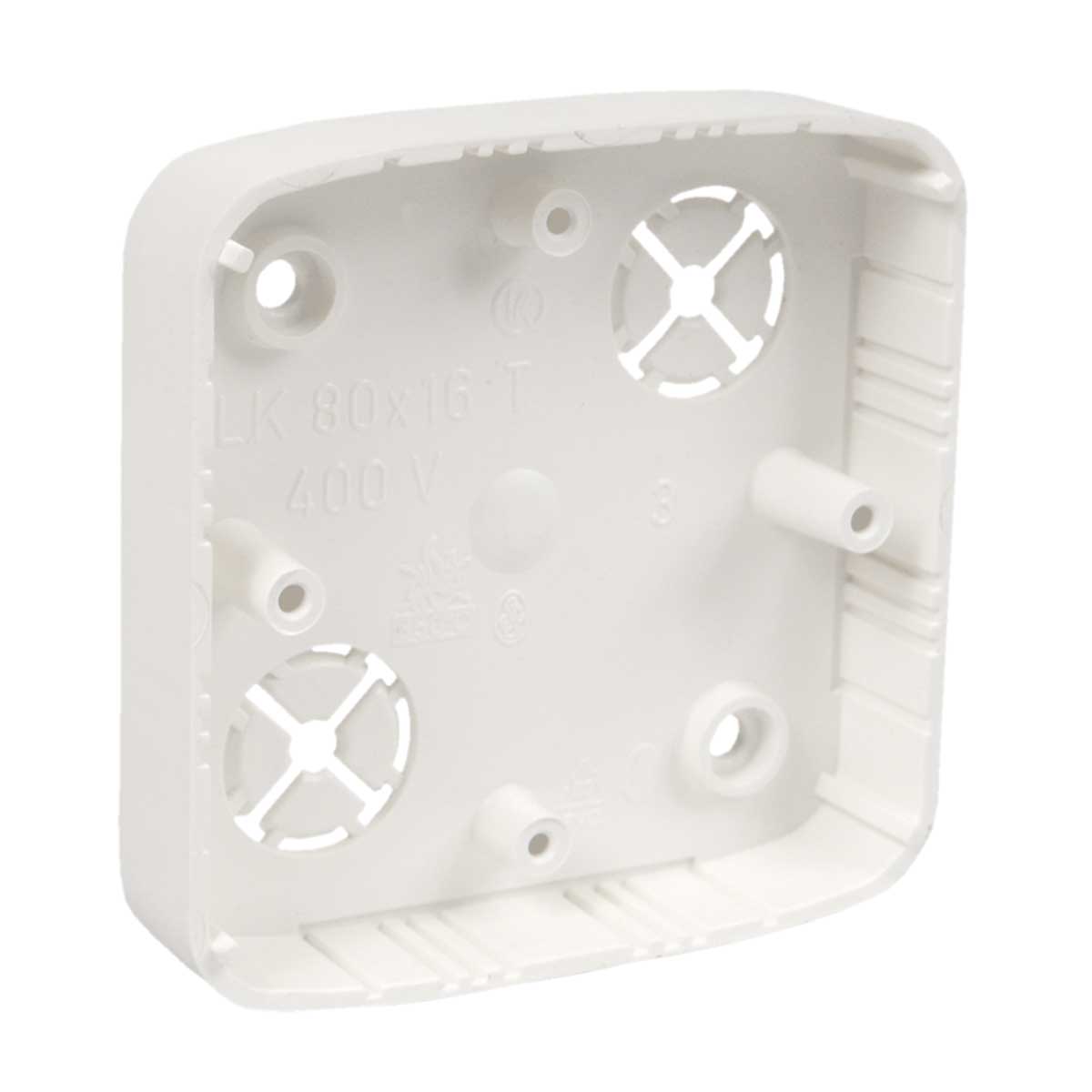

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
LK80X16T_EN
| EAN kod | 8595057619296 |
| Tarifni broj | 39259080 |
| Težina | 0,0320 kg/pcs |
| Boja | white |
| Materijal | PVC |
| Materijal bez ulja | yes |
| Samogasivi | 30 s |
| Nazivni napon | <= 400 V |
| Nazivna struja | <= 16 A |
| Otpornost na temperaturu | -5 - 60 °C |
| Probna petlja | 850 °C |

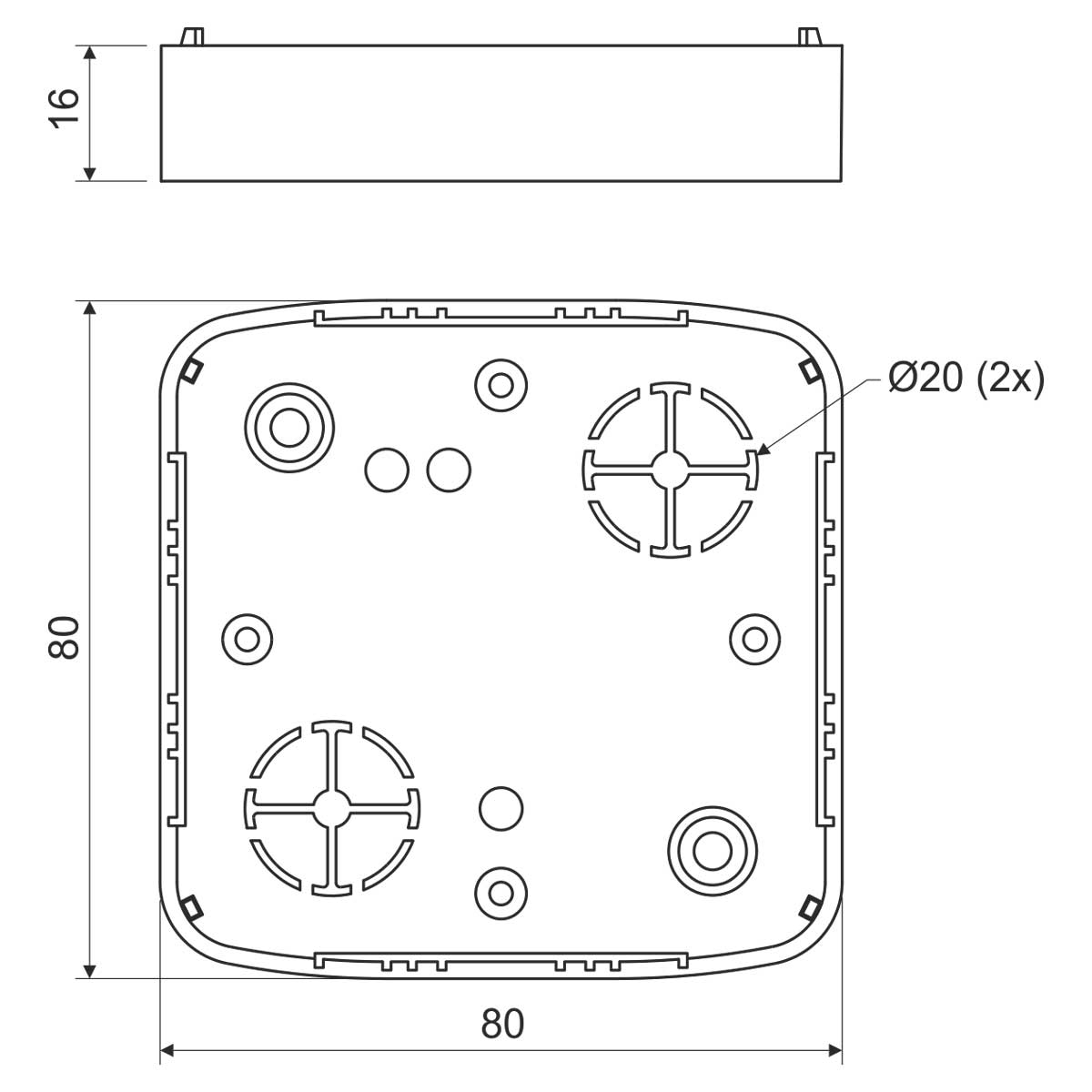

| Širina | 80,5 mm |
| Visina | 80,5 mm |
| Dubina | 16 mm |
| Klasa reakcije na požar podložnog materijala | A1 - D |
| Proširivanje reakcije na vatru temeljnog materijala Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F | |
| Standardi | ČSN EN 60 670-1 |
| Opis paketa the boxes are packed in a shrink foil of 10 pieces and the screws are enclosed | |
Intended for devices of Tango - ABB series. To install on materials with fire classes E or F, use insulating pad.
