Mounting profile head

Prilozi i certifikati

Ilustrativni prikaz

tehnički list
HMP41_EN

certifikat
Conformity declaration
Declaration RoHS
Declaration REACH
Certificate ESČ
Izjava o sukladnosti

EAN kod	8595568932549
Tarifni broj	73269098
Težina	1,0000 kg/pcs
Površinska obrada	Hot Dip Galvanized
Debljina metala	5 mm
Dimenzija A	120 mm

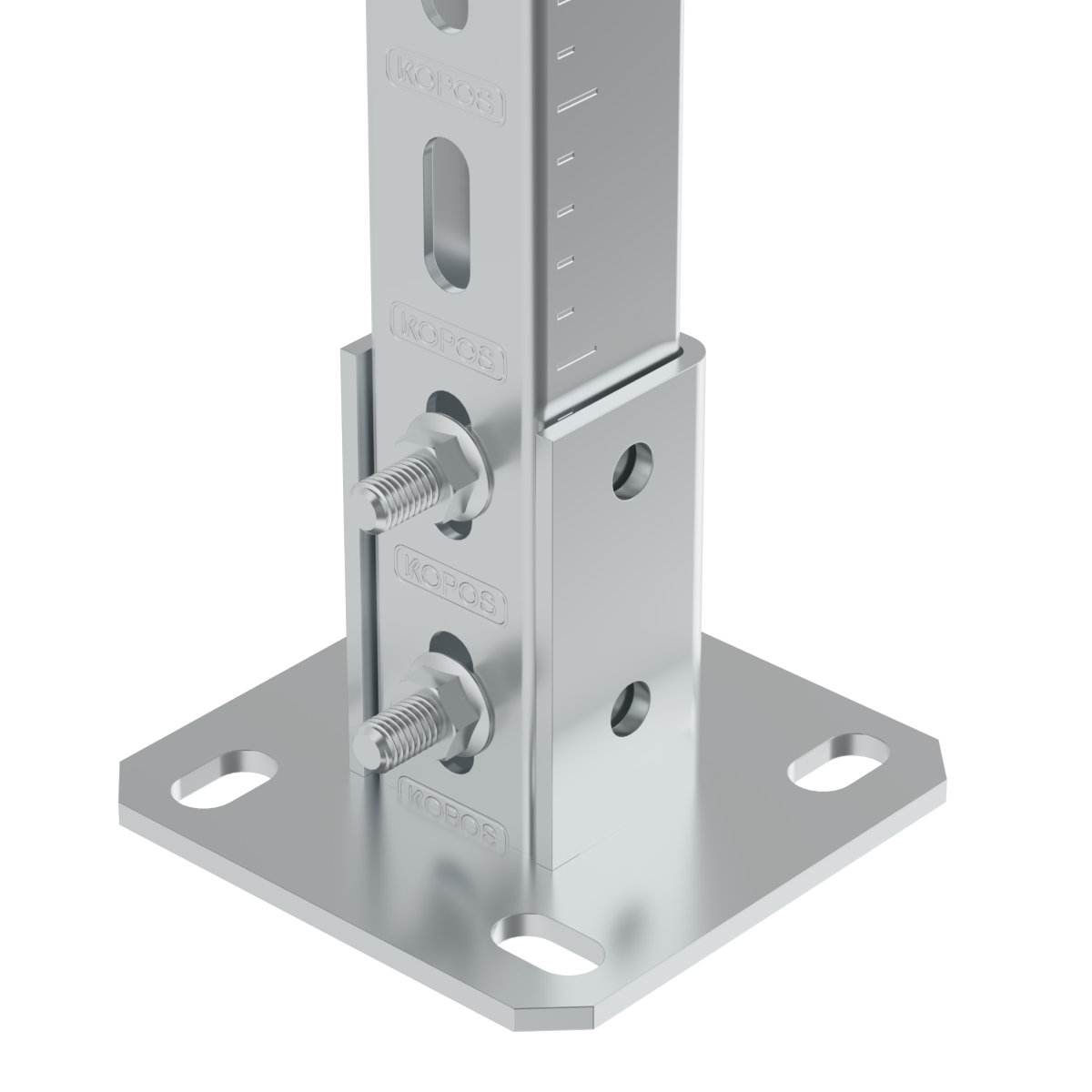

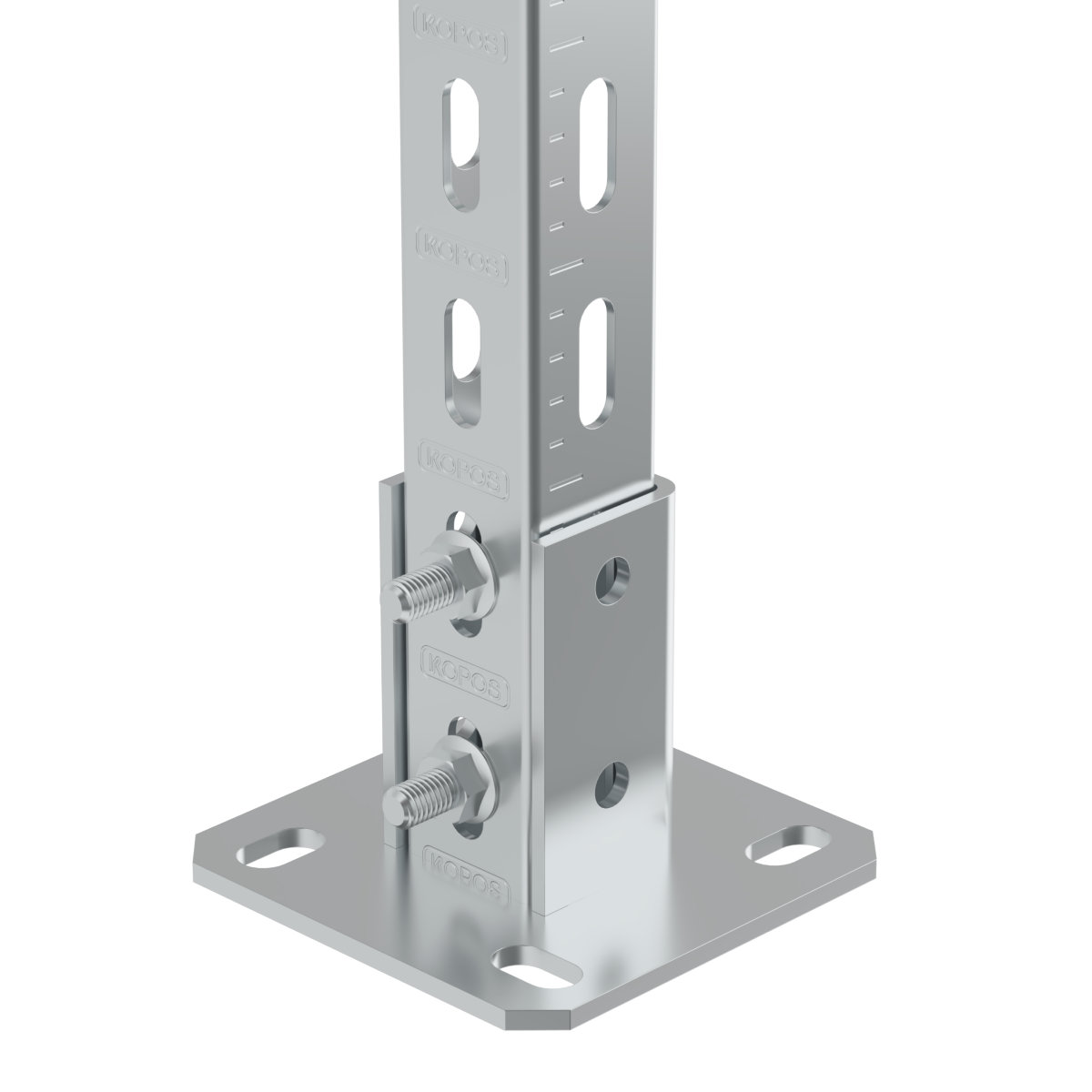

HMP 41_F head is designed for fixing of MP 41X41 or MP 41X21 mounting profiles to the ﬂoor or ceiling. The mounting profile MP 41X41 is fixed to the head with two S 10X70 screws, M 10 nuts and PD 10 washers. The mounting profile MP 41X21 is fixed to the head with two S 10X50 screws, M 10 nuts and PD 10 washers. By combining the head and the mounting profile, it is possible to create the ceiling profile (holder) of any length.
