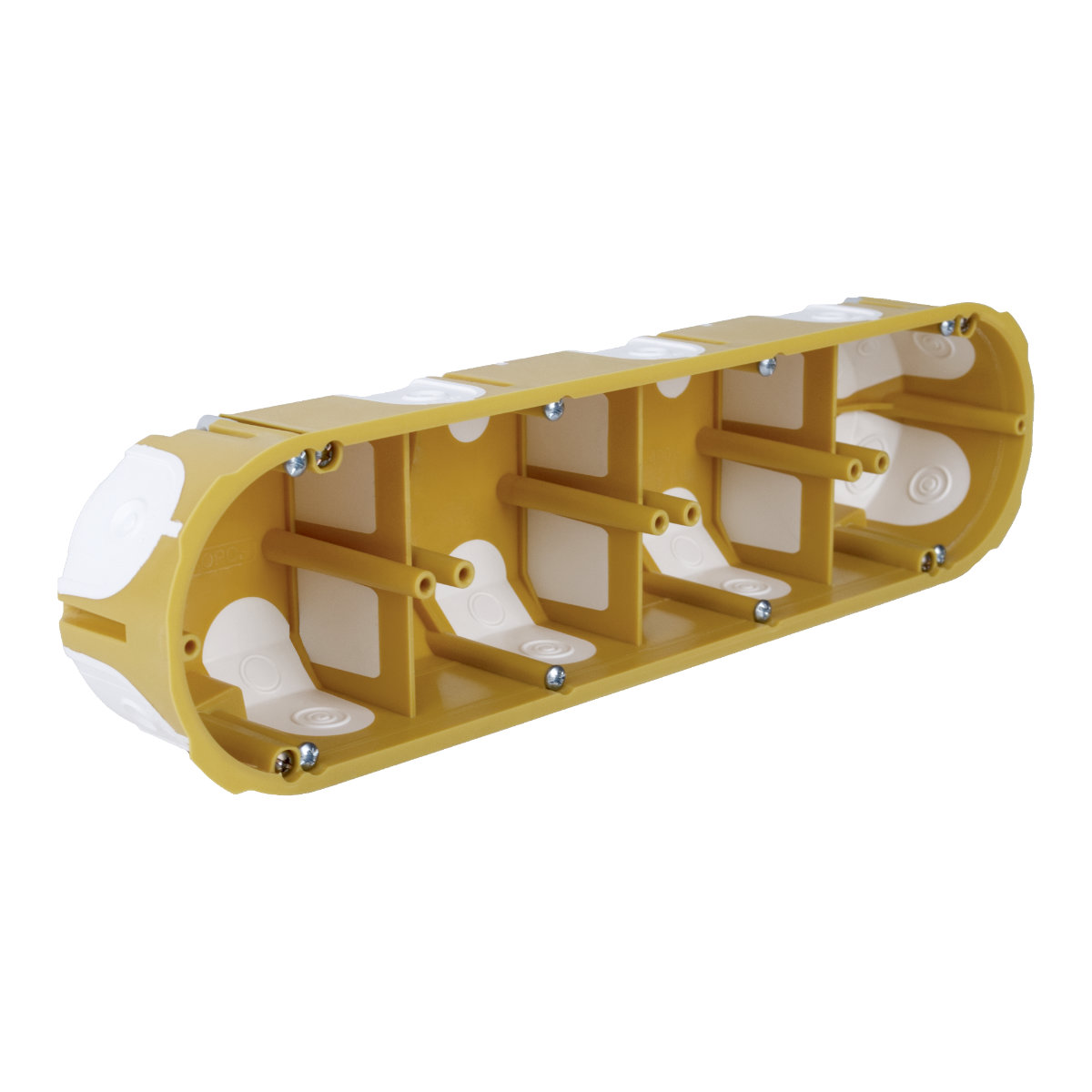

KPL64504LD_EN
| EAN kod | 8595568931948 |
| Tarifni broj | 39259080 |
| Težina | 0,1320 kg/pcs |
| Materijal | PVC |
| Materijal bez ulja | yes |
| Zvučna izolacija | yes |
| Samogasivi | 30 s |
| Nazivni napon | <= 400 V |
| Nazivna struja | <= 16 A |
| Otpornost na temperaturu | -5 - 60 °C |
| Probna petlja | 850 °C |
| Širina | 280 mm |
| Visina | 68 mm |
| Dubina | 50 mm |
| Promjer rupa (bušenih) | 68 mm |
| Preporuka proizvođača For all range of products in hollow walls, we recommend using the milling sets supplied by us. | |
| Klasa reakcije na požar podložnog materijala | A1 - F |
| Prostor kada spojimo dvije kutije | 71 mm |
| Vrste zaštite | IP 30 |
| Standardi | ČSN EN 60 670-1 |
| Opis paketa the box is fitted with screws for fixing onto plasterboard and with instrument screws, pack loosely in a box | |
For modern installations in combined frames. Highly rigid design makes the device installation simpler. Inlet openings made of flexible material. Air proofed even with inserted cable or pipe. Prevents airflow through the installation. Suitable for low-energy or passive houses and for soundproof walls with attenuation up to 69 dB. Four tips on the external side indicate the drilling points. Mounting bolts feature double-threaded design for quick installation. Installation box in the hole is made by tightening mounting screws. Cable installation is done by removing (breaking) pre-pressed membrane inlet and followed by inserting the cable possibly pipe. Protected by European industrial design trademark. The IP30 protection a box fitted with an instrument with protection a higher or equal IP30 protection. When mounting, it is not necessary to countersink the plasterboard edge.
